SELECT A DIAGRAM
New Model Search:

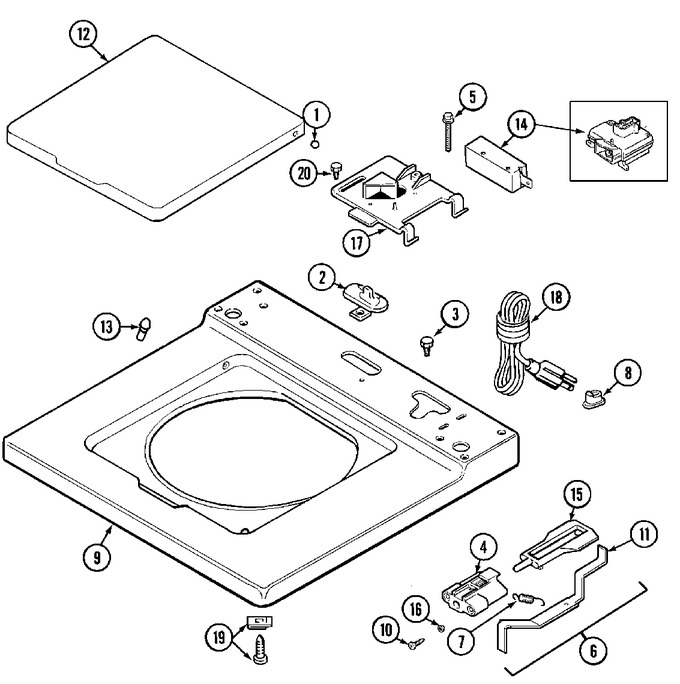

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP211726 | Hinge, Ball (Replaces: 211726) | 10 |
|
Immediately | $ 7.18 | |||
| 002 | W11233072 | Screw (Replaces: 207159) | 10 |
|
Immediately | $ 12.62 | |||
| 002 | 22001298 | Cap, Top Cover | 10 |
|
- | ||||
| 003 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 004 | 22002135 | Bracket, Unbalance | 15 |
|
$ 22.51 | ||||
| 004 | NLA | Bracket, Unbalance----na | 10 |
|
- | ||||
| 005 | 213501 | Screw, No.6-20 X 1-1/8 Inch | 10 |
|
$ 12.03 | ||||
| 006 | 22001681 | Lever Assy. (unbalance) | 10 |
|
$ 5.84 | ||||
| 006 | 22001969 | Unbalance Lever Assembly | 15 |
|
$ 22.12 | ||||
| 007 | WP213720 | Spring (Replaces: 213720) | 10 |
|
$ 7.63 | ||||
| 008 | 211881 | Grommet, Cord | 10 |
|
- | ||||
| 008 | 216183 | Grommet, Cord Export | 10 |
|
- | ||||
| 008 | 22002532 | Grommet, Cord | 10 |
|
- | ||||
| 009 | WP489128 | Screw (Replaces: 216423) | 12 |
|
$ 9.79 | ||||
| 009 | 22001867 | Cover, Top (wht) | 10 |
|
- | ||||
| 009 | 22001920 | Fuse (10a) | 12 |
|
- | ||||
| 009 | 22001921 | Holder, Fuse | 12 |
|
- | ||||
| 009 | 22001970 | Cover Assy., Top (wht) | 15 |
|
- | ||||
| 009 | 22001971 | Cover Assy., Top (alm)----na | 15 |
|
- | ||||
| 009 | 22002142 | Cover Assy., Top (wht-eng)--na | 15 |
|
- | ||||
| 009 | NLA | Cover, Top (alm) | 10 |
|
- | ||||
| 010 | W10756178 | Screw (Replaces: 910182) | 10 |
|
$ 5.39 | ||||
| 011 | 22001672 | Lever, Unbalance | 10 |
|
- | ||||
| 011 | 22001968 | Lever, Unbalance | 15 |
|
- | ||||
| 012 | 22001341 | Lid W/legend (wht) | 10 |
|
- | ||||
| 012 | 22001342 | Lid W/legend (alm)----na | 10 |
|
- | ||||
| 012 | 22001594 | Lid (wht-w/legend) | 10 |
|
- | ||||
| 013 | WP212716 | Bumper, Lid (Replaces: 212716) | 10 |
|
Immediately | $ 7.88 | |||
| 014 | 22001682 | Switch Assy., Lid W/4amp Fuse | 10 |
|
$ 53.77 | ||||
| 014 | 22001922 | Sub-harness | 12 |
|
- | ||||
| 014 | 22001967 | Switch, Lid | 15 |
|
- | ||||
| 014 | 22002383 | Switch, Lid (240 V) | 15 |
|
- | ||||
| 015 | 216255 | Plunger, Unbalance | 10 |
|
$ 5.84 | ||||
| 016 | 211500 | Washer,bracke To Top Cover | 10 |
|
- | ||||
| 017 | 22001678 | Bracket, Switch & Fuse | 10 |
|
$ 28.61 | ||||
| 018 | 205056 | Cord, Power | 10 |
|
- | ||||
| 018 | 208569 | Cord, Power | 10 |
|
- | ||||
| 018 | 208746 | Cord, Power (export) | 15 |
|
- | ||||
| 018 | 208749 | Cord, Power (export) | 15 |
|
- | ||||
| 018 | 22001351 | Cord, Power | 10 |
|
- | ||||
| 018 | WP22003062 | Cord, Power (Replaces: 22001549) | 15 |
|
$ 121.96 | ||||
| 018 | NLA | Cord, Power | 10 |
|
- | ||||
| 019 | 204445 | Screw & Fastener Asy. | 10 |
|
- | ||||
| 020 | W11233072 | Screw (Replaces: 207159) | 10 |
|
Immediately | $ 12.62 | |||
| 021 | 22003417 | Actuator Kit (export) |
|
- |
