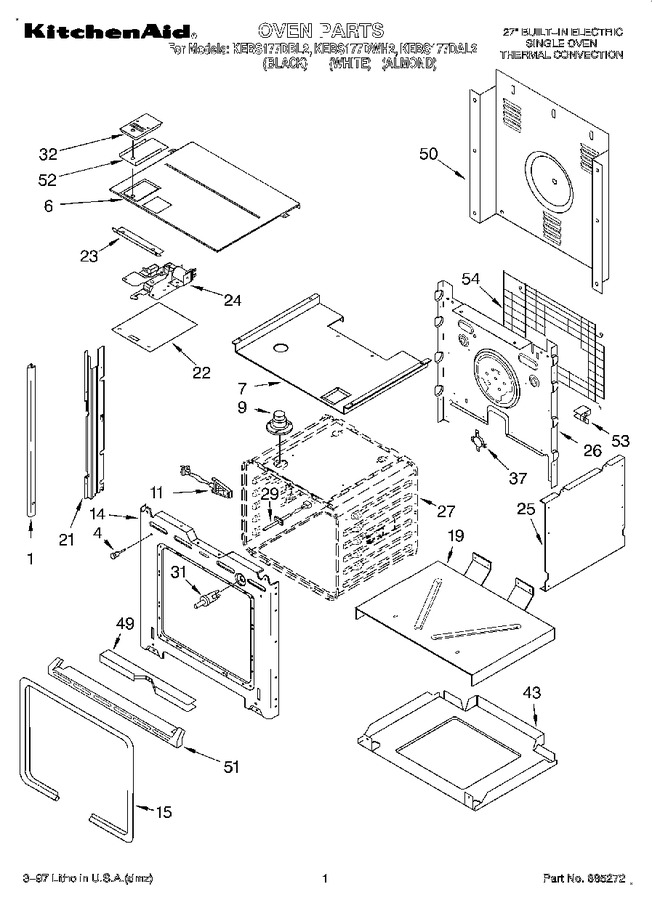

SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 6.80
1	4449041		Trim, Side (screw) (white, Alm. Mdls.)				$ 5.27
1	4450844		Trim, Side (rh Black)		Appelez-nous	-
1	4450845		Trim, Side (white, Right)		Appelez-nous	-
1	4450846		Trim, Side (right Hand) (almond Model)		Appelez-nous	-
1	4450847		Trim, Side (lh Black)		Appelez-nous	-
1	4450848		Trim, Side (lh White)		Appelez-nous	-
1	4450849		Trim, Side (lh Almond)		Appelez-nous	-
4	4448520		Bumper, Door				$ 19.07
6	4451038		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	4451165		Partition		Appelez-nous	-
9	4449009		Tube, Vent		Appelez-nous	-
9	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
11	4449748		Screw				$ 12.20
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 98.46
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4450416		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4449371)				$ 159.09
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4450541		Support, Insulation		Appelez-nous	-
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 108.63
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 109.53
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 6.80
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 6.73
22	4450289		Screw		Appelez-nous	-
22	4451036		Shield, Latch		Appelez-nous	-
23	4450051		Deflector, Latch		Appelez-nous	-
23	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
24	4454710		Latch Assy		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
25	4450528		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
26	4454728		Back, Chassis		Appelez-nous	-
29	4450026		Sensor		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
31	4450819		Switch, Door		Appelez-nous	-
32	4449369		Vent Box Assy		Appelez-nous	-
37	WP4450934		Thermostat (tod) (temp.) Spst   (Replaces: 4450934)				$ 195.44
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
43	4450526		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
49	WP4448933		Retainer   (Replaces: 4448933)				$ 7.97
50	4450544		Cover, Back		Appelez-nous	-
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
51	4448458		Trim, Bottom (black Model)		Appelez-nous	-
51	4450289		Trim, Bottom (screw)		Appelez-nous	-
51	4448460		Trim, Bottom (almond Model)		Appelez-nous	-
51	4448459		Trim, Bottom (white Model)		Appelez-nous	-
52	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
52	4450795		Vent Extension		Appelez-nous	-
53	4449845		Bracket-support		Appelez-nous	-
54	4450364		Insulation, Back		Appelez-nous	-
54	4451002		Spacer, Harness		Appelez-nous	-
54	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
54	4449315		Insulation, Wrap				$ 64.81
