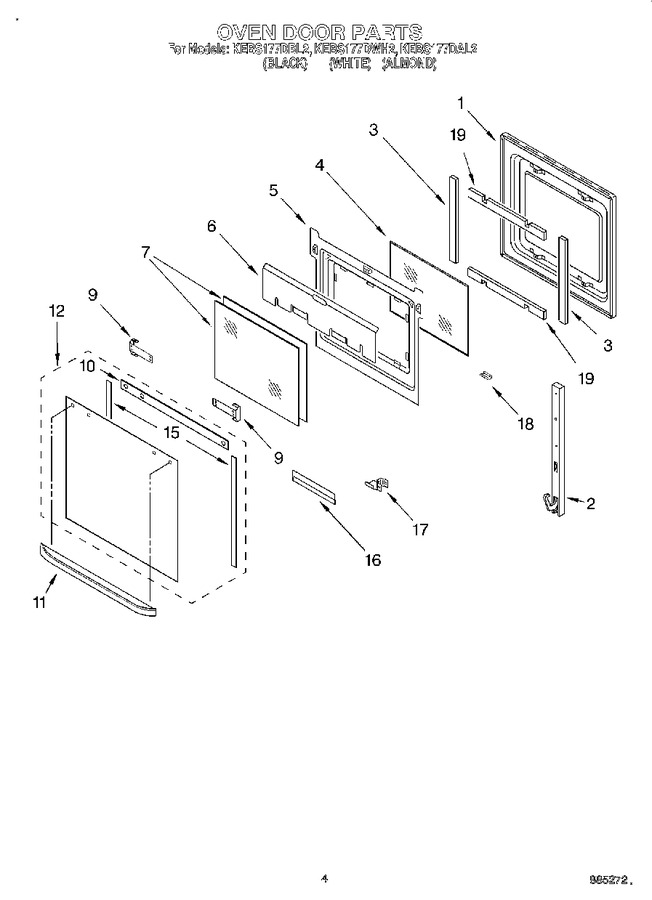

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450428		Door Liner		Appelez-nous	-
2	WP4455524		Hinge, Door   (Replaces: 4451173)			Immediately	$ 61.08
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
3	W11688413		Insulation, Sides   (Replaces: 4448707)				$ 23.08
4	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4450422		Retainer, Glass		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
6	4450361		Shield, Heat		Appelez-nous	-
7	WP4449257		Glass, Inner (2)   (Replaces: 4449257)			Immediately	$ 178.55
9	4450813		Bracket, Handle				$ 24.20
9	W10276642		Screw   (Replaces: 4451040)				$ 5.49
10	4450836		Seal, Top		Appelez-nous	-
11	4448412		Handle (white Model)		Appelez-nous	-
11	4448411		Handle (black Model)		Appelez-nous	-
11	4448413		Handle (almond Model)		Appelez-nous	-
12	4450696		Glass, Outer (black Model)		Appelez-nous	-
12	4450698		Glass, Outer (almond Model)		Appelez-nous	-
12	4450697		Glass, Outer (white Model)		Appelez-nous	-
15	4450838		Seal, Sides		Appelez-nous	-
16	4449031		Retainer, Glass		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
17	4450470		Retainer, Glass		Appelez-nous	-
18	4450865		Clip, Retainer (almond Model)		Appelez-nous	-
18	4450864		Clip, Retainer (white Model)		Appelez-nous	-
18	4450863		Clip, Retainer (black Model)		Appelez-nous	-
19	4448679		Insulation Top And Bottom		Appelez-nous	-
