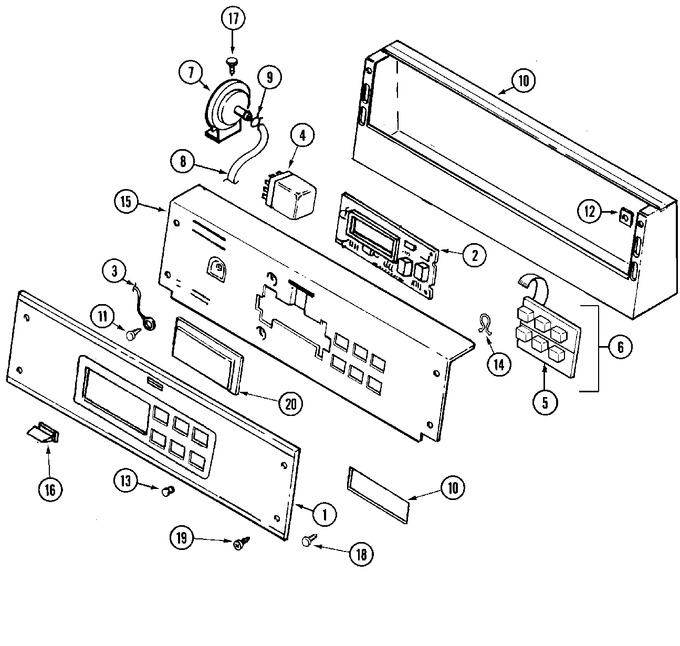

01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Base
06 - Transmission
07 - Clutch, Brake & Belts
08 - Wiring Information
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22001949 | Panel, Control (w/lens) | 10 |
|
- | ||||
| 001 | 22003662 | Control Panel Assembly | 10 |
|
- | ||||
| 001 | WP488234 | Screw, Control Panel (back) (Replaces: Y313588) | 10 |
|
$ 6.07 | ||||
| 002 | WP22004222 | Board, Control (Replaces: 22002731) | 10 |
|
$ 315.04 | ||||
| 002 | 22004048 | Commercial D.c. Control Board | 40 |
|
- | ||||
| 002 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 003 | 901220 | Wire, Ground | 10 |
|
- | ||||
| 004 | 206421 | Relay-motor Reversing | 10 |
|
- | ||||
| 004 | 22001418 | Plate, Relay | 10 |
|
- | ||||
| 004 | 22001866 | Screw, Relay | 10 |
|
- | ||||
| 005 | WPW10424308 | Pushbutton, Control Switch (Replaces: 215517) | 10 |
|
Immediately | $ 18.38 | |||
| 006 | WPW10135389 | Control Switch Assy. (Replaces: 206808) | 10 |
|
$ 125.66 | ||||
| 007 | 203263 | Switch, Water Level | 10 |
|
- | ||||
| 008 | WP22001619 | Tube, Water Level Switch (Replaces: 22001619) | 10 |
|
$ 75.73 | ||||
| 009 | WP285655 | Clamp, Water Level Tube (Replaces: 22003295) | 10 |
|
Immediately | $ 7.55 | |||
| 010 | WPW10131115 | Bezel (Replaces: 22001976) | 10 |
|
$ 7.63 | ||||
| 011 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 012 | 215003 | Fastener, Control Panel | 10 |
|
- | ||||
| 013 | WP215564 | Lens, Indicator (amber) (Replaces: 215564) | 10 |
|
Immediately | $ 7.14 | |||
| 014 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 015 | 22001975 | Bracket, Back (wht) | 10 |
|
- | ||||
| 016 | 214610 | Bumper, Lid | 10 |
|
- | ||||
| 017 | WP90767 | Screw, Water Level Switch (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 018 | WPW10131119 | Screw, Torx (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 019 | W10756178 | Screw, Control Panel (frt) (Replaces: 215527) | 10 |
|
$ 5.39 | ||||
| 020 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 42.79 | ||||
| 021 | 22001973 | Harness, Pr Service | 10 |
|
- | ||||
| 021 | 33001856 | Reader Harness Kit (16``) | 10 |
|
- | ||||
| 022 | NLA | Installation Instruction | 10 |
|
- |
