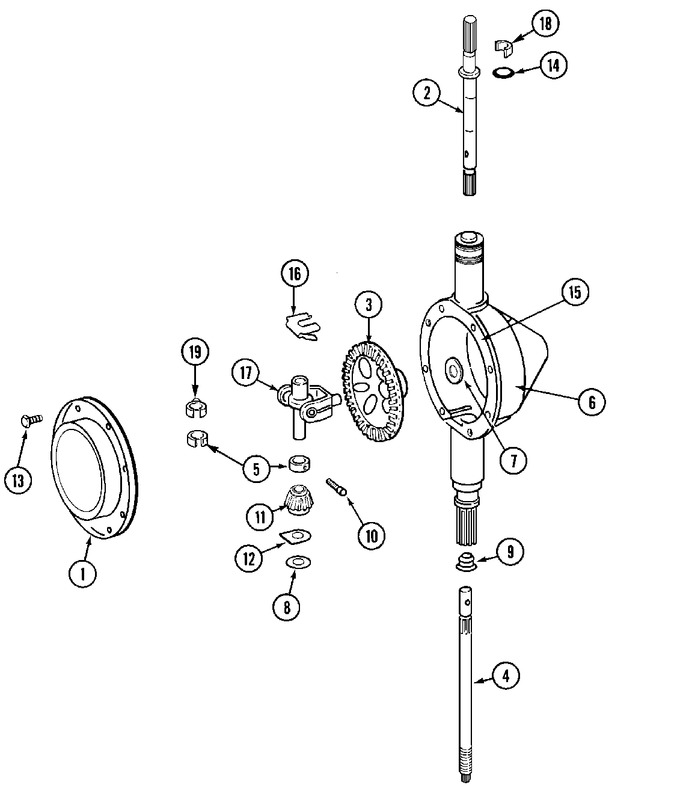

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	206628		Cover, Transmission	10	Appelez-nous	-
002	22002415		Shaft, Agitator	10	Appelez-nous	-
003	206713		Gear, Bevel	10	Appelez-nous	-
004	22002342		Shaft, Center (deep Tub)	10	Appelez-nous	-
005	22002353		Collar, Center Shaft	10			$ 5.84
006	22002416		Assembly, Case Casting Deep	10	Appelez-nous	-
006	Y056080		Trans Lube - Auto, 34 Oz.	10	Appelez-nous	-
007	215394		Washer, Bevel Gear	10	Appelez-nous	-
008	WP6-2114830		Washer, Splined   (Replaces: 211483)	10			$ 7.05
009	206602		Seal, Lip (center Shaft)	10	Appelez-nous	-
010	22002126		Trans (deep Tub, Complete)	10	Appelez-nous	-
011	WPW10221114		Pinion   (Replaces: 215401)	10			$ 58.63
012	WP215395		Plate, Clutch   (Replaces: 215395)	10		Immediately	$ 6.79
013	215417		Screw, Transmission Cover	10	Appelez-nous	-
014	WP22002417		O-ring Agitator Shaft   (Replaces: 22002417)	10			$ 6.47
015	W10841140		Silastic, Adhesive Sealant   (Replaces: Y058700)	10		Immediately	$ 24.92
016	22002341		Collar, Lower Plastic Keeper	10			$ 5.65
017	206685		Block, Torque And Yoke Assembl	10	Appelez-nous	-
018	WP22002340		Collar, Agitator Shaft   (Replaces: 22002340)	10		Immediately	$ 7.36
019	22002341		Collar, Lower Plastic Keeper	10			$ 5.65
