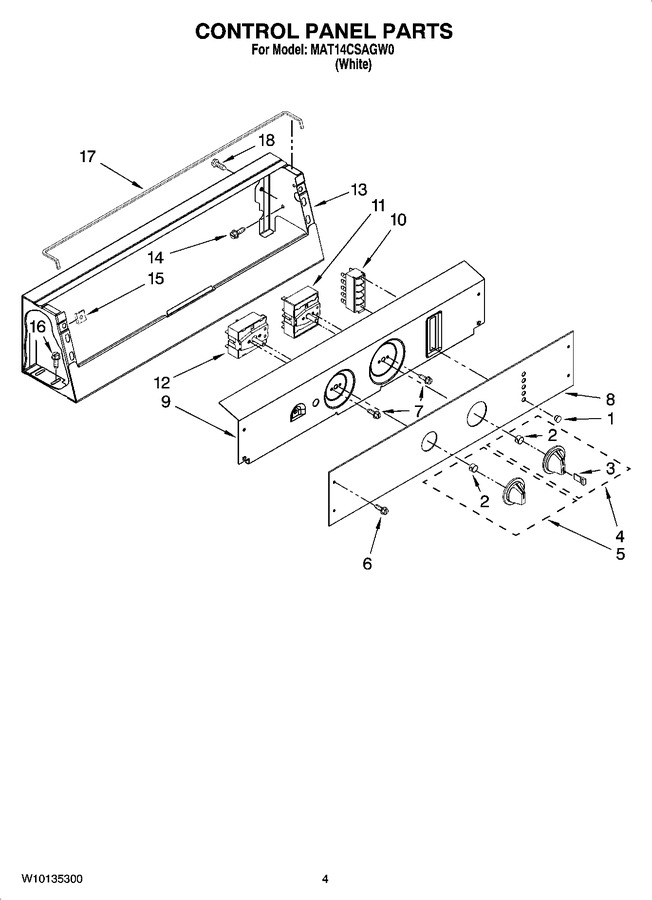

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10133502		Lens, Amber Indicator   (Replaces: W10133502)				$ 11.58
2	W10140928		Clip, Knob				$ 5.22
3	W10141516		Bumper, Lid		Appelez-nous	-
4	W10133503		Knob & Bumper Assembly				$ 34.66
5	W11103226		Knob   (Replaces: W10133504)				$ 61.07
6	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.26
7	W10139100		Screw, 8-32 X 1/4				$ 11.15
8	W10135341		Facia / Overlay		Appelez-nous	-
9	W10124209		Bracket, Control		Appelez-nous	-
10	W10133276		Indicator, Five Light		Appelez-nous	-
11	WPW10330139		Switch, Cycle Selector   (Replaces: W10135589)				$ 185.11
12	W10330138		Switch 2 Way Load Size   (Replaces: W10135588)				$ 200.67
13	W10231471		Console (includes Item 17)   (Replaces: W10205153)		Appelez-nous	-
14	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 6.75
15	WPW10131123		Nut, 8 U-type   (Replaces: W10131123)				$ 6.94
16	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.04
17	WPW10157932		Foam Seal   (Replaces: W10157932)			Immediately	$ 7.25
18	WP488488		Screw, 8-18 X 1/2   (Replaces: 489290)				$ 6.91
