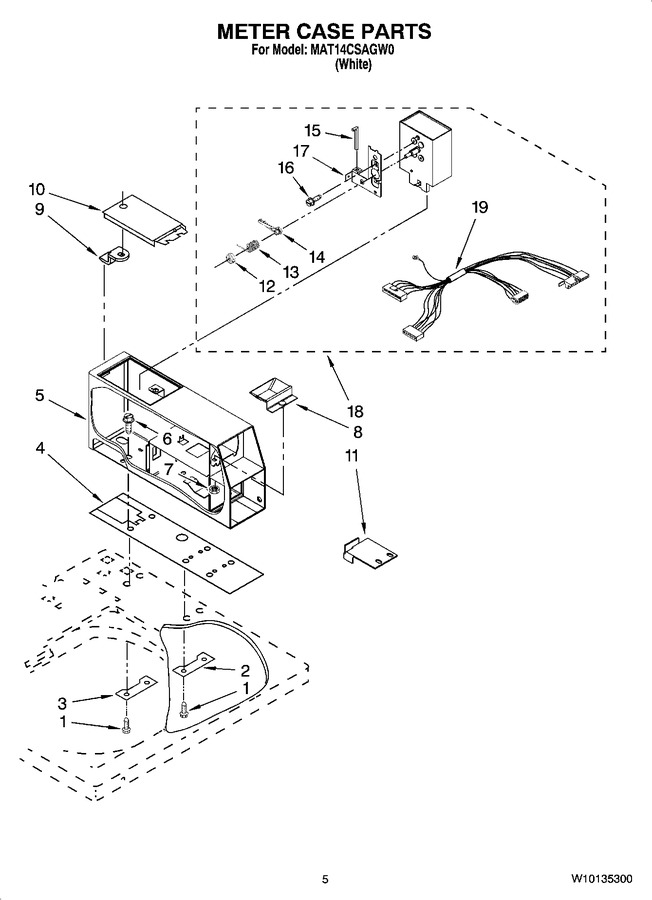

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
2	3347825		Plate Mounting		Appelez-nous	-
3	3353813		Plate, Mounting				$ 47.08
4	WP3954812		Cushion, Case   (Replaces: 3954812)				$ 27.99
5	WPW10529172		Meter Case   (Replaces: W10136649)				$ 345.34
6	3353994		Bolt, Meter Case Mounting (5/16-18 X 2 1/2)		Appelez-nous	-
6	W11715721		Bolt, Meter Case Mounting (5/16-24 X 1.00 (3))   (Replaces: 3349065)				$ 6.41
7	W10139060		Nut, 1/4-20		Appelez-nous	-
8	W10133509		Funnel, Coin				$ 74.49
9	W11401086		Cam, Commercial Lock   (Replaces: W10145154)				$ 6.17
10	W11283272		Door, Service   (Replaces: 3351136)				$ 95.29
11	W10158754		Extension				$ 58.80
12	W10140689		Retainer, Spring				$ 55.20
13	W10143431		Spring, Timer Lever				$ 21.98
14	W10133511		Arm, Pivot				$ 16.97
15	W10133512		Rod, Actuator				$ 70.88
16	W10139761		Screw, 10-32 X 3/8		Appelez-nous	-
17	W10133513		Bracket, Timer		Appelez-nous	-
18	W10180676		Timer, Bracket & Clutch Assembly		Appelez-nous	-
19	W10186660		Harness, Timer		Appelez-nous	-
