SELECT A DIAGRAM

01 - Control Center


02 - Control Panel


03 - Top


04 - Cabinet


05 - Tub Cover


06 - Tub


07 - Transmission


08 - Base


09 - Brake & Rotor


10 - Motor & Pump

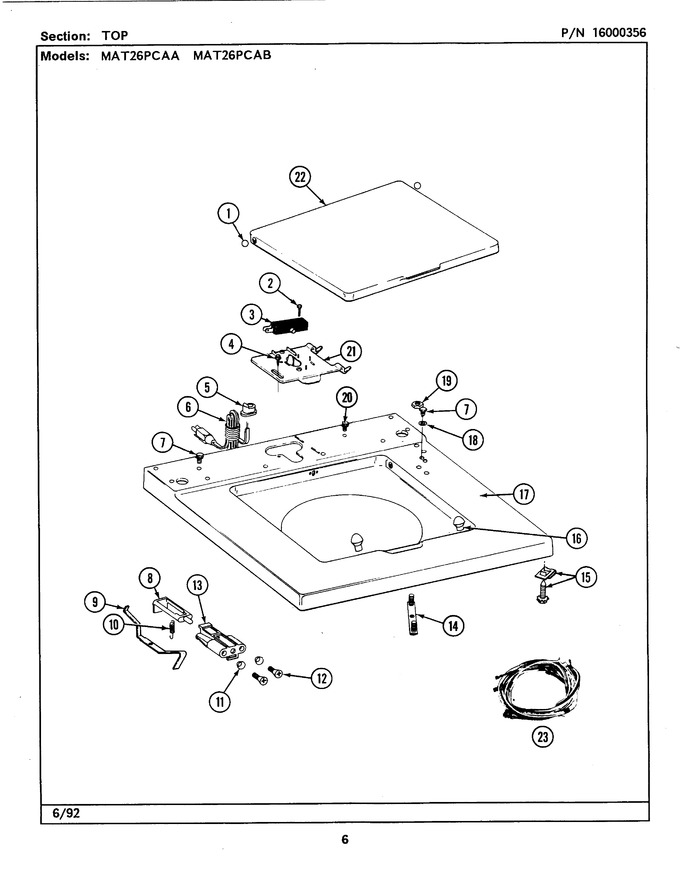

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP211726		Hinge, Ball Lid   (Replaces: 211726)	B4		Immediately	$ 7.18
002	213501		Screw, Lid Switch	B4			$ 12.03
003	W10820036		Switch, Lid (w/o Tub Light)   (Replaces: 205415)	B4		Immediately	$ 27.45
004	W11233072		Screw, Lid   (Replaces: 207159)	B4		Immediately	$ 12.62
005	211881		Grommet, Power Cord	B4	Appelez-nous	-
006	204590		Cord, Power	B4			$ 61.20
007	WP90767		Screw   (Replaces: 211294)	B4		Immediately	$ 7.04
008	216255		Plunger, Lid Switch	B8			$ 5.84
008	NLA		Plunger, Lid Switch	B4	Appelez-nous	-
008	NLA		Kit, Plunger & Bracket	B8	Appelez-nous	-
009	215704		Lever, Unbalance	B4	Appelez-nous	-
010	WP213720		Spring   (Replaces: 213720)	B4			$ 7.63
011	211500		Washer, Nylon	B4	Appelez-nous	-
012	W10756178		Screw, Nylon Guide Bracket   (Replaces: 910182)	B4			$ 5.39
013	214279		Bracket, Lid Switch	B4	Appelez-nous	-
013	NLA		Bracket, Lid Switch	B8	Appelez-nous	-
014	NLA		Strap, Control Ctr. Mtg.	B4	Appelez-nous	-
015	204445		Screw & Fastener Asy.	B4	Appelez-nous	-
016	WP212716		Bumper, Lid   (Replaces: 212716)	B4		Immediately	$ 7.88
017	207173		Cover, Top (wht)	B4	Appelez-nous	-
017	NLA		(alm)	B4	Appelez-nous	-
018	910309		Washer, Mtg. Strap	B4	Appelez-nous	-
019	WP62739		Nut   (Replaces: Y052740)	B4			$ 6.85
020	WP90767		Screw   (Replaces: Y313559)	B4		Immediately	$ 7.04
021	22001678		Bracket,switch & Fuse   (Replaces: Y215699)	B4			$ 28.61
022	214901		Lid (wht)	B4	Appelez-nous	-
022	NLA		(alm)	B4	Appelez-nous	-
023	NLA		Wire Harness Nla	B4	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
