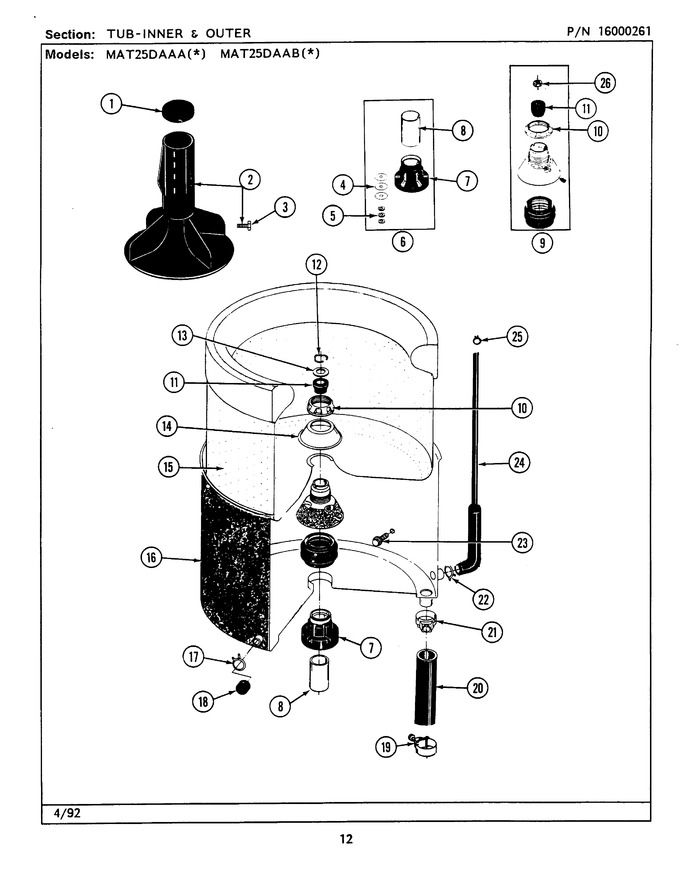

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	215532		Cap, Agitator (black)	B4			$ 5.65
002	207119		Agitator W/lock Screw (black)	B4	Appelez-nous	-
002	WP208543		Agitator (w/lock Screw)   (Replaces: 208543)	B7			$ 228.71
003	206478		Screw & ``o`` Ring	B4	Appelez-nous	-
004	211100		Washer, Outer Tub (brace)	B4	Appelez-nous	-
005	Y054867		Washer, Lock	B4	Appelez-nous	-
006	6-2040130		Tub Bearing Repair Kit   (Replaces: 204013)	B5		Immediately	$ 73.68
007	6-2040130		Bearing, Tub   (Replaces: 200824)	B5		Immediately	$ 73.68
008	211130		Liner, Bearing	B5			$ 724.10
009	204012		Stem, Mtg. Repair Kit	B5	Appelez-nous	-
010	211047		Nut, Clamping	B4	Appelez-nous	-
011	WP6-0A57420		Seal, Water   (Replaces: Y0A4298)	B4		Immediately	$ 33.64
012	Y015667		Retaining Ring	B4			$ 8.70
013	WPY015666		Washer, Retaining   (Replaces: Y015666)	B4			$ 6.96
014	211210		Washer, Clamping Nut	B4			$ 5.84
015	NLA		Tub, Inner W/ Plugs	B4	Appelez-nous	-
016	205486		Tub, Outer	B4	Appelez-nous	-
017	WP596669		Clamp, Spring   (Replaces: 214739)	B4		Immediately	$ 7.56
018	214725		Cap, Spout	B4			$ 5.65
019	WP3367052		Clamp, Hose   (Replaces: 202574)	B4			$ 7.49
020	WPY212989		Hose, Pump   (Replaces: Y212989)	B4		Immediately	$ 46.51
021	WP616099		Clamp, Hose   (Replaces: 200900)	B4		Immediately	$ 7.03
022	WP285655		Clamp   (Replaces: 211641)	B4		Immediately	$ 7.55
023	W10175939		Bolt & Gasket Assy.(short)   (Replaces: 200744)	B4			$ 7.79
023	W10175938		Bolt & Gasket Assembly (long)   (Replaces: 205254)	B4		Immediately	$ 7.00
024	WP22001619		Air Dome & Tube   (Replaces: 212942)	B4			$ 75.73
025	WP596669		Clamp, Corbin   (Replaces: 410296)	B4		Immediately	$ 7.56
026	215980		Plug	B4			$ 64.66
