01 - Control Panel


02 - Top


03 - Cs Control Center


04 - Coin Slide


05 - Cabinet


06 - Tub Cover


07 - Tub


08 - Transmission


09 - Base


10 - Base/brake & Rotor


11 - Motor & Pump

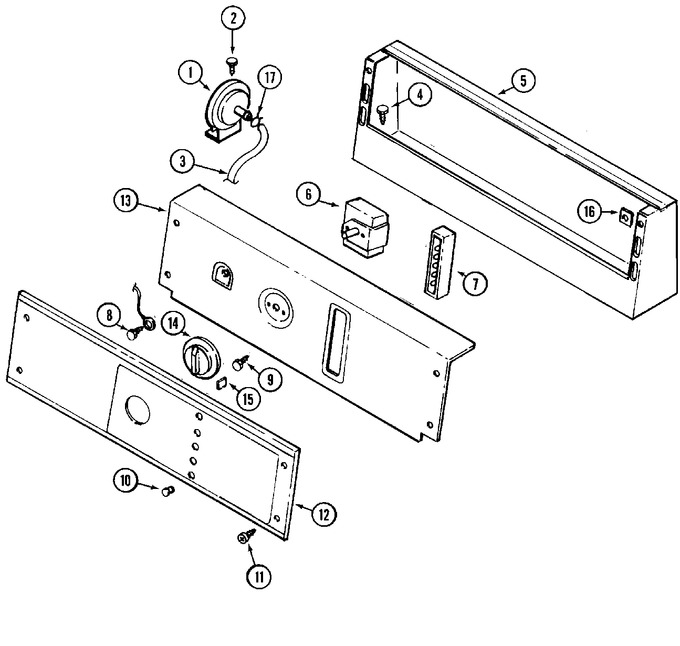

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	203970		Switch	B2			$ 72.19
002	WP90767		Screw   (Replaces: 211294)	B2		Immediately	$ 7.04
003	WP22001619		Air Dome & Tube   (Replaces: 212942)	B2			$ 75.73
004	WP90767		Screw   (Replaces: 212276)	B2		Immediately	$ 7.04
005	206780		Control Cover Assy. (wht)	B2	Appelez-nous	-
005	206780L		(alm)	B2	Appelez-nous	-
005	NLA		(h. Wheat)	B2	Appelez-nous	-
006	COMM PART		Switch, Temperature   (Replaces: 205353)	B2	Appelez-nous	-
007	206881		Indicator, 5 Light 115v	B2			$ 96.51
008	Y314322		Screw (no.8-32 X 3/8``)	B2	Appelez-nous	-
009	WP488234		Screw   (Replaces: Y313588)	B2			$ 6.07
010	WP215564		Lens, Indicator (amber)   (Replaces: 215564)	B2		Immediately	$ 7.14
011	WPW10131119		Screw, Torx   (Replaces: 215506)	B2			$ 6.26
012	NLA		Panel, Control (w/lens)	B2	Appelez-nous	-
013	215570		Plate, Backup (wht)	B2	Appelez-nous	-
013	NLA		(alm)	B2	Appelez-nous	-
014	206894		Knob W/bump	B2	Appelez-nous	-
015	215561		Bumper, Lid	B2	Appelez-nous	-
016	215003		Fastener	B2	Appelez-nous	-
017	WP596669		Clamp, Water Lvl. Switch Tube   (Replaces: 410296)	B2		Immediately	$ 7.56
