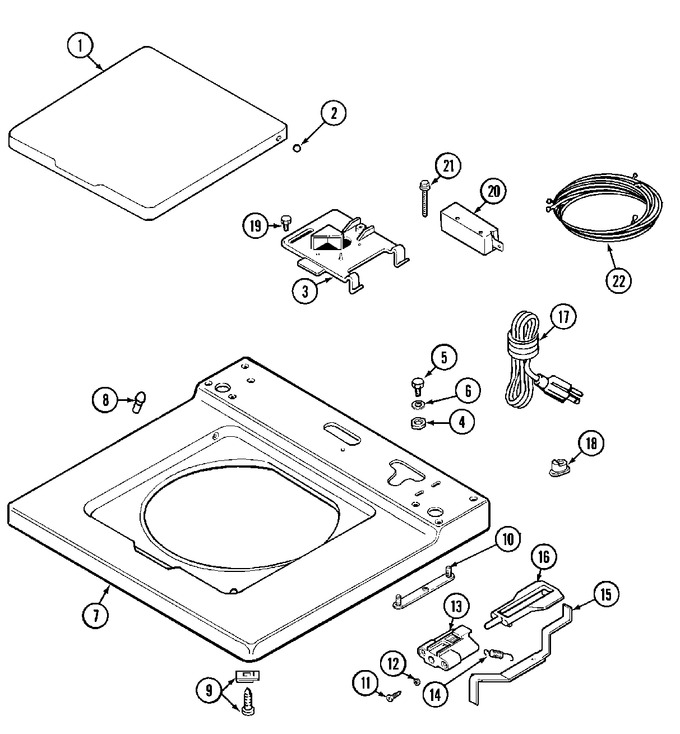

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	214901		Lid (wht)	B2	Appelez-nous	-
001	NLA		(alm)	B2	Appelez-nous	-
002	WP211726		Hinge, Ball   (Replaces: 211726)	B2		Immediately	$ 7.18
003	22001678		Bracket,switch & Fuse   (Replaces: Y215699)	B2			$ 28.61
004	WP62739		Nut   (Replaces: Y052740)	B2			$ 6.85
005	WP90767		Screw   (Replaces: 211294)	B2		Immediately	$ 7.04
006	910309		Washer	B2	Appelez-nous	-
007	207173		Top Cover Assembly (wht)	B2	Appelez-nous	-
007	NLA		(alm)	B2	Appelez-nous	-
008	WP212716		Bumper, Lid   (Replaces: 212716)	B2		Immediately	$ 7.88
009	204445		Screw & Fastener Assembly	B2	Appelez-nous	-
010	NLA		Strap, Mounting	B2	Appelez-nous	-
011	W10756178		Screw   (Replaces: 910182)	B2			$ 5.39
012	211500		Washer, Bracket	B2	Appelez-nous	-
013	204968		Plunger & Bracket Assembly--w	B2			$ 26.05
013	NLA		Plunger & Bracket Kit	B8	Appelez-nous	-
014	WP213720		Spring   (Replaces: 213720)	B2			$ 7.63
015	215704		Lever, Unbalance	B2	Appelez-nous	-
016	213718		Plunger, Lid Switch	B2			$ 12.10
016	216255		Plunger, Lid Switch	B8			$ 5.84
017	204590		Cord, Power	B2			$ 61.20
017	NLA		Cord, Power	B2	Appelez-nous	-
018	211881		Grommet, Cord	B2	Appelez-nous	-
019	W11233072		Screw   (Replaces: 207159)	B2		Immediately	$ 12.62
020	W10820036		Switch, Lid (w/o Tub Light)   (Replaces: 205415)	B2		Immediately	$ 27.45
021	213501		Screw (no.6-20 X 1-1/8``)	B2			$ 12.03
022	207161		Wire Harness	B2	Appelez-nous	-
