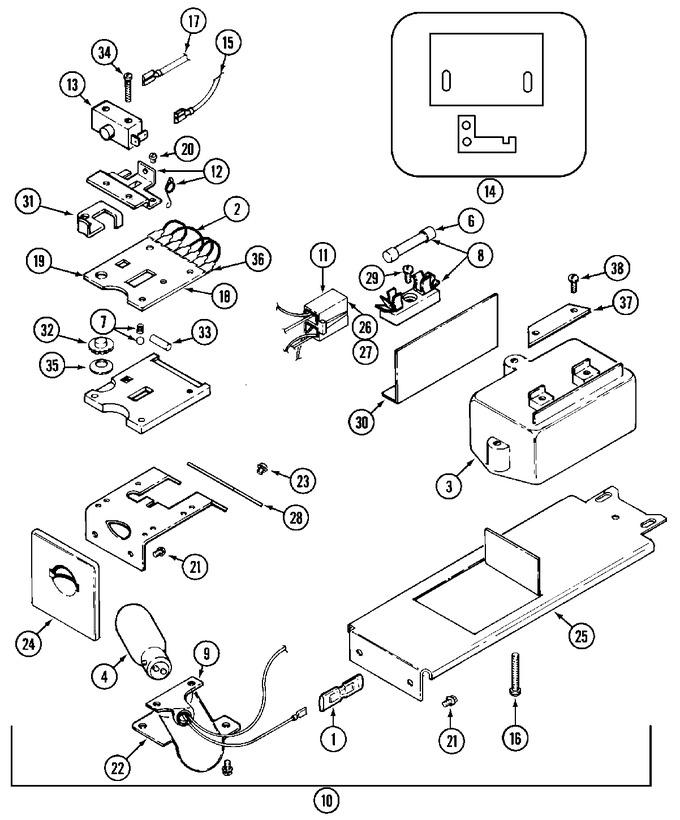

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y201110 | Wire Connector | B1 |
|
- | ||||
| 002 | NLA | Jumper Wire (black) | B1 |
|
- | ||||
| 003 | 202477 | Electronic Control | B1 |
|
- | ||||
| 004 | 202479 | Lamp, Ticket Control | B1 |
|
- | ||||
| 005 | 202509 | Ticket Control | B1 |
|
- | ||||
| 006 | WP22001555 | Fuse (Replaces: 202713) | B1 |
|
Immediately | $ 27.33 | |||
| 007 | 203140 | Contact Ball Kit | B1 |
|
Immediately | $ 25.88 | |||
| 008 | NLA | Fuse Block W/fuse | B1 |
|
- | ||||
| 009 | NLA | Lamp Socket W/bracket | B1 |
|
- | ||||
| 010 | NLA | Ticket Receiver Assembly | B1 |
|
- | ||||
| 011 | NLA | Harness, Ticket Control | B1 |
|
- | ||||
| 012 | 204881 | Cam Plate Assembly | B1 |
|
- | ||||
| 013 | 204882 | Switch, Ticket Control | B1 |
|
- | ||||
| 014 | NLA | Double Melt Clip W/deflector | B1 |
|
- | ||||
| 015 | NLA | Spade Connector | B1 |
|
- | ||||
| 016 | WP90767 | Screw (Replaces: 211294) | B1 |
|
Immediately | $ 7.04 | |||
| 017 | WP248562 | Wire Connector (Replaces: 211737) | B1 |
|
$ 6.95 | ||||
| 018 | NLA | Overlay, Circuit Board | B1 |
|
- | ||||
| 019 | 212452 | Circuit Board | B1 |
|
- | ||||
| 020 | NLA | Sems Screw (no.4-40 X 1/2``) | B1 |
|
- | ||||
| 021 | WP488234 | Screw (no.8-32 X 1/4``) (Replaces: 212519) | B1 |
|
$ 6.07 | ||||
| 022 | 212533 | Shield, Heat Lamp | B1 |
|
$ 11.78 | ||||
| 023 | NLA | Screw, Shield | B1 |
|
- | ||||
| 024 | NLA | Front Plate, Ticket Control | B1 |
|
- | ||||
| 025 | NLA | Bracket, Ticket Assembly | B1 |
|
- | ||||
| 026 | 213074 | Pin Receptacle, Plug | B1 |
|
- | ||||
| 027 | NLA | Pin, Plug | B1 |
|
- | ||||
| 028 | NLA | Ticket Deflector | B1 |
|
- | ||||
| 029 | NLA | Screw (no.6 X 1/4``) | B1 |
|
- | ||||
| 030 | 213378 | Block & Electronic Control) |
|
- | |||||
| 030 | NLA | Electrical Shield, Fuse | B1 |
|
- | ||||
| 031 | 214218 | Switch Lever | B1 |
|
$ 80.43 | ||||
| 032 | 214220 | Adjustment Thumb Wheel | B1 |
|
- | ||||
| 033 | 214275 | Roller, Cam | B1 |
|
- | ||||
| 034 | NLA | Screw | B1 |
|
- | ||||
| 035 | NLA | Spring Washer | B1 |
|
- | ||||
| 036 | Y311550 | Spade (miniature) | B1 |
|
- | ||||
| 037 | 311612 | Cover, Circuit Board | B1 |
|
- | ||||
| 038 | 311613 | Screw - Circuit Board Cover | B1 |
|
- |
