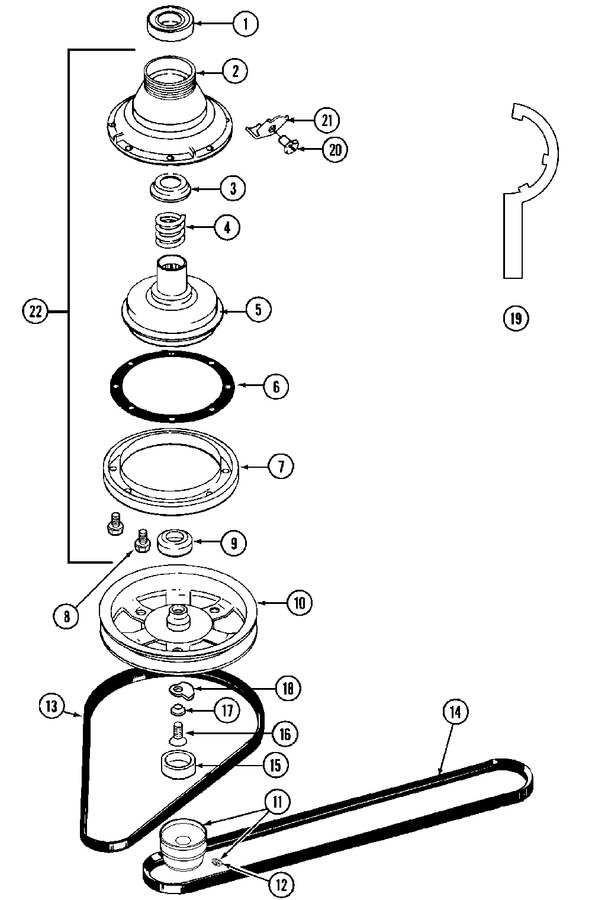

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y200720		Ball Bearing, Radial----s	B1	Appelez-nous	-
002	211045		Housing, Brake	B1	Appelez-nous	-
003	211039		Retainer, Brake Spring	B1	Appelez-nous	-
004	211041		Spring, Brake	B1	Appelez-nous	-
005	201126		Rotor, Brake (w/facing)	B1	Appelez-nous	-
006	211042		Gasket, Brake Drum	B1	Appelez-nous	-
007	211043		Drum, Brake	B1	Appelez-nous	-
008	WP8281227		Screw, Brake Drum (hex Hd)   (Replaces: 211000)	B1			$ 9.40
009	200835		Bearing, Brake Rotor	B1			$ 30.47
010	WP6-2301530		Pulley, Drive   (Replaces: 211059)	B1			$ 178.73
011	200816		Pulley, Motor (w/set Screw)	B1	Appelez-nous	-
012	Y053241		Set Screw, Pulley	B1	Appelez-nous	-
013	12112425		V Belt,drive Pulley   (Replaces: 211125)	B1		Immediately	$ 45.06
014	12112425		V Belt, Pump   (Replaces: 211124)	B1		Immediately	$ 45.06
015	NLA		Cap, Oil Retainer	B1	Appelez-nous	-
016	WP912618		Screw, Stop Lug   (Replaces: 211375)	B1			$ 6.98
017	WP22003555		Washer, Lock   (Replaces: 211090)	B1			$ 19.26
018	WP211089		Lug, Stop   (Replaces: 211089)	B1			$ 10.16
019	Y038315		Tool, Brake Package Assembly	B1	Appelez-nous	-
020	213326		Bolt, Retaining Clip	B1	Appelez-nous	-
021	213325		Clip, Retainer	B1			$ 5.51
022	201190		Brake Assembly	B1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
