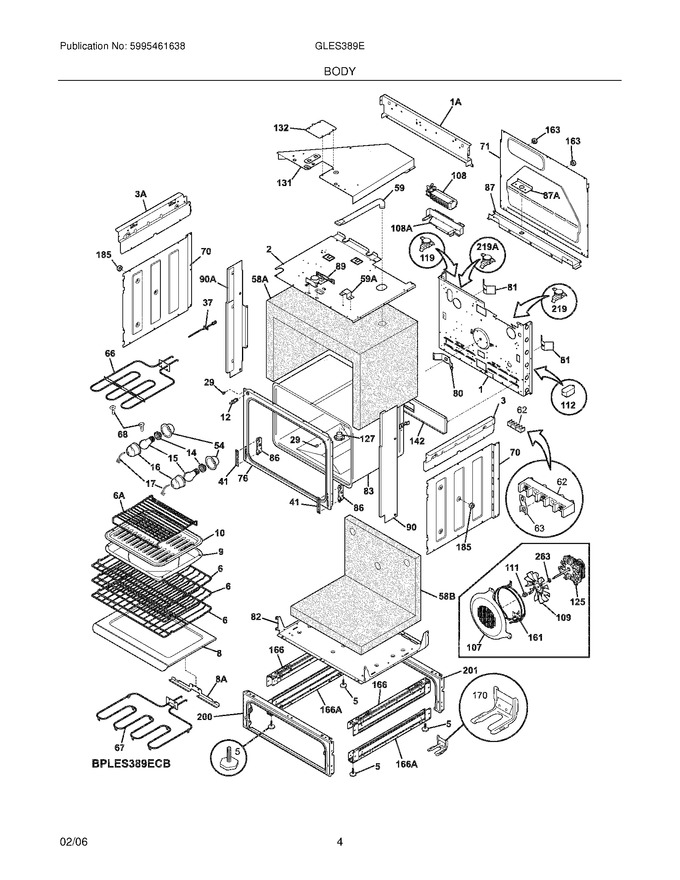

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259202 | Back,main |
|
- | |||||
| 2 | 318258902 | Shield,insulation ,upper |
|
- | |||||
| 3 | 318225210 | Panel,bodyside ,upper Rh |
|
$ 55.86 | |||||
| 5 | 318175510 | Screw-leveling (Replaces: 318175503) |
|
Immediately | $ 24.26 | ||||
| 6 | 318262503 | Rack,oven |
|
- | |||||
| 8 | 318262001 | Cover,element |
|
$ 398.49 | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 29 | 318147430 | Bumper,(2) (Replaces: 318147411) |
|
$ 18.95 | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 59 | 318072560 | Duct,oven Vent |
|
- | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 63 | 318264200 | Plate,grounding Strap |
|
$ 23.51 | |||||
| 66 | 318255605 | Element,broil ,2750w (Replaces: 318255600) |
|
Immediately | $ 192.78 | ||||
| 67 | 318254906 | Element,bake ,3400w ,8 Pass (Replaces: 318254901) |
|
Immediately | $ 259.36 | ||||
| 68 | 5304403015 | Support,hanger ,(2) ,broil Element |
|
$ 35.04 | |||||
| 70 | 318259100 | Shield,insulation ,sides ,(2) |
|
$ 63.05 | |||||
| 71 | 318260007 | Panel,rear Box |
|
$ 102.90 | |||||
| 76 | 318056217 | Front,oven |
|
$ 143.06 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258708 | Shield,insulation ,lower |
|
- | |||||
| 83 | 318261400 | Liner,oven Assy |
|
$ 313.16 | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 87 | 318260608 | Bracket,cable Mtg. |
|
- | |||||
| 90 | 318296902 | Panel,filler ,white ,rh |
|
$ 73.71 | |||||
| 107 | 318219405 | Cover,fan (Replaces: 318219401) |
|
$ 82.69 | |||||
| 109 | 318398302 | Blade,fan (Replaces: 316136400) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 127 | 318317100 | Adapter Assembly,vent Tube ,w/converter |
|
$ 75.13 | |||||
| 131 | 318272900 | Box,vent |
|
- | |||||
| 132 | 318003000 | Plate,shield |
|
- | |||||
| 142 | 318123910 | Deflector |
|
- | |||||
| 163 | 318531702 | Spacer,(6) (Replaces: 318014110) |
|
$ 9.93 | |||||
| 166 | 318298400 | Bracket,base Support ,(4) |
|
$ 59.48 | |||||
| 170 | 318335500 | Anti-tip & Accessories |
|
$ 46.94 | |||||
| 185 | 318165800 | Spacer,(2) |
|
$ 17.72 | |||||
| 200 | 318298201 | Frame,drawer ,black ,front |
|
- | |||||
| 201 | 318298210 | Frame,drawer |
|
$ 81.95 | |||||
| 263 | 316008401 | Washer,flat (Replaces: 316136500) |
|
$ 11.34 | |||||
| 1A | 318225110 | Panel,main Back ,upper |
|
$ 63.05 | |||||
| 3A | 318225211 | Panel,bodyside ,upper Lh |
|
$ 48.25 | |||||
| 58A | 318285055 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318285056 | Insulation,oven Back |
|
$ 76.53 | |||||
| 59A | 318261600 | Bracket,vent Tube |
|
- | |||||
| 6A | 318219500 | Rack,broiler Pan |
|
- | |||||
| 87A | 318111804 | Plate,cord Set Mtg |
|
- | |||||
| 8A | 318318600 | Bracket,element ,hidden Bake |
|
$ 37.17 | |||||
| 90A | 318296903 | Panel,filler ,white ,lh |
|
$ 67.73 | |||||
| F108 | 318073028 | Motor,blower (Replaces: 318073018) |
|
Immediately | $ 271.69 | ||||
| F108 | 318251300 | Bracket,fan Support |
|
$ 54.60 | |||||
| F112 | 318112703 | Relay |
|
$ 66.99 | |||||
| F119 | 318005212 | Switch,thermal Cutout |
|
$ 59.58 | |||||
| F12 | 808136601 | Switch,light (Replaces: 318089917) |
|
Immediately | $ 44.04 | ||||
| F125 | 5304467898 | Motor,fan (Replaces: 316415800) |
|
Immediately | $ 225.67 | ||||
| F161 | 318255504 | Element,convection ,350 W (Replaces: 318255503) |
|
$ 97.07 | |||||
| F166 | 318298403 | Bracket,base Support ,lower ,(2) |
|
- | |||||
| F219 | 318003614 | Thermostat,safety |
|
Immediately | $ 84.61 | ||||
| F219 | 318003624 | Thermostat,safety (Replaces: 318003613) |
|
Immediately | $ 23.39 | ||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| F89 | 318261230 | Motor,latch Assy (Replaces: 318261209) |
|
$ 129.80 | |||||
| NI | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| NI | 3201861 | Screw,6 X 0.375 ,(4) |
|
$ 0.76 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 ,(4) |
|
Immediately | $ 14.18 | ||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 5304436875 | Screw,8-18 X 1/2,black |
|
$ 14.41 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 318249401 | Tube,protector |
|
$ 6.23 | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 318224941 | Harness,wiring ,main |
|
- | |||||
| NI | 318235301 | Connector Assy.,w/3 Lugs ,& Instructions (Replaces: 318235300) |
|
$ 29.06 |
