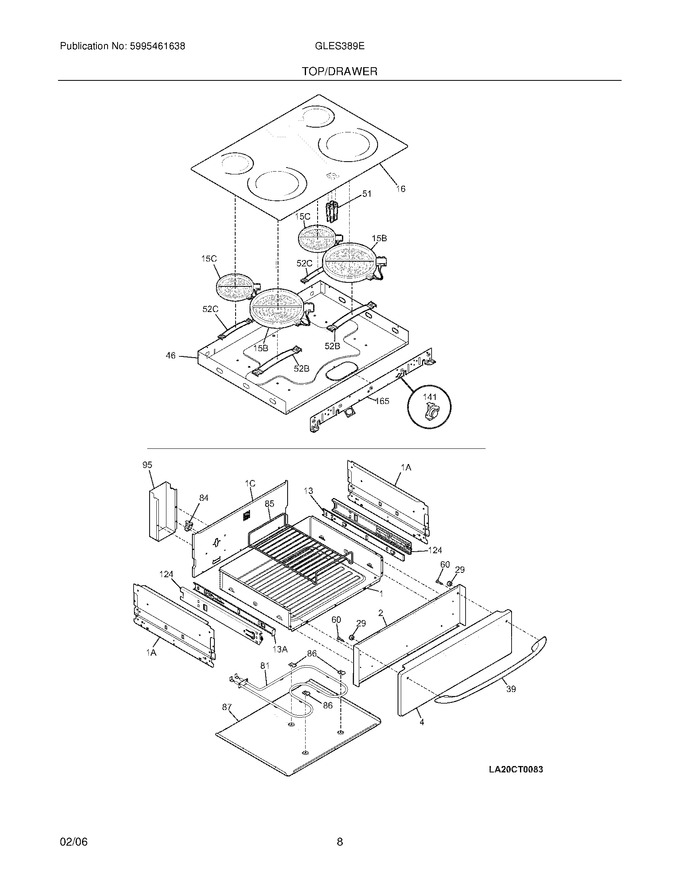

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304401		Drawer,body Assembly		Appelez-nous	-
2	318303901		Panel,drawer ,black ,inner		Appelez-nous	-
4	318299901		Panel,drawer ,white ,front		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh			Immediately	$ 69.01
16	318223638		Main Top,glass Assy. ,white		Appelez-nous	-
29	318147430		Bumper,(2)				$ 18.95
39	316270201		Handle,door ,white			Immediately	$ 128.29
46	318225410		Box,burner		Appelez-nous	-
60	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318300102		Panel,warmer Drawer ,lower   (Replaces: 318300100)				$ 106.22
95	318303800		Shield,wire		Appelez-nous	-
124	316105501		Glide,warmer Drawer ,outer/rh & Lh ,(2)				$ 90.72
165	318227503		Plate,mounting				$ 247.59
13A	318259506		Glide,warmer ,inner Lh				$ 69.01
1A	318300003		Panel,warmer Drawer ,side ,(2)   (Replaces: 318300000)				$ 56.13
1C	318300300		Panel,warmer Drawer ,rear		Appelez-nous	-
52B	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
52C	318122008		Spring-element Mtg				$ 90.80
F141	318005211		Switch,thermal Cutout		Appelez-nous	-
F15B	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
F15C	318198930		Element,surface ,dual ,750/1800w ,(2)				$ 335.32
F51	318044820		Light,indicator ,red		Appelez-nous	-
F81	318255301		Element,warmer Drawer   (Replaces: 318255300)				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
NI	318228913		Harness,wiring ,cooktop		Appelez-nous	-
NI	318199749		Wiring Harness,drawer		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
