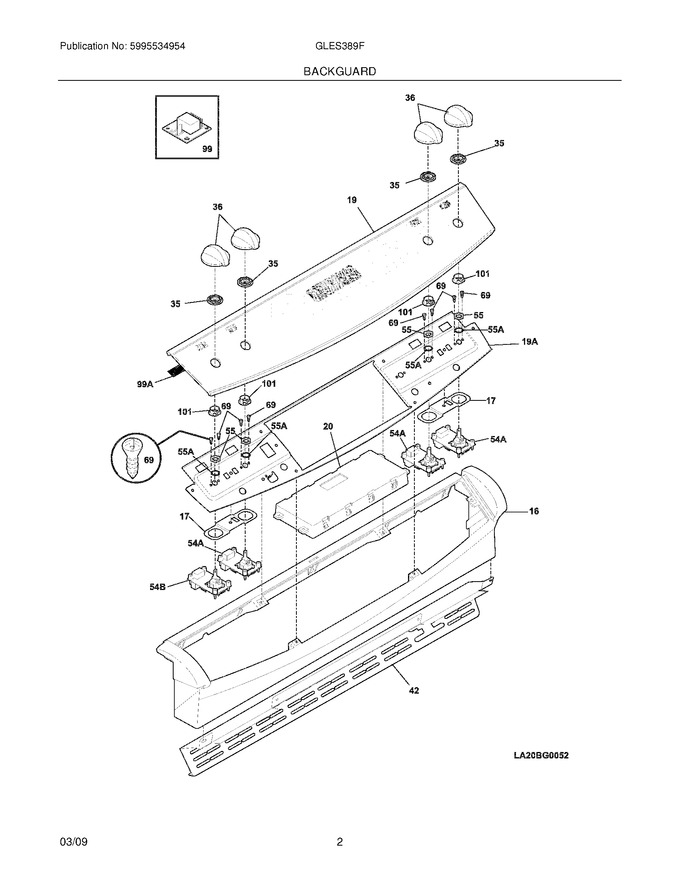

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299100		Console,assy. ,white				$ 418.11
17	318306900		Bracket,bushing ,(2)		Appelez-nous	-
19	318313800		Control Panel Assembly,white ,w/touch Pad		Appelez-nous	-
35	318233720		Retainer,control Panel ,black				$ 20.48
36	318197623		Knob,control ,white				$ 32.76
42	318298001		Trim,vent ,black ,upper				$ 59.01
55	316247700		Nut,mounting				$ 18.20
69	5303288565		Screw,8-32 X 3/16 ,(4)   (Replaces: 5303323134)				$ 3.12
101	318233400		Bushing,retainer				$ 43.21
19A	318224405		Panel,control Mtg.		Appelez-nous	-
55A	316247800		Washer,lock ,mtg				$ 18.20
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	316462841		Controller,electronic ,es510x				$ 457.93
F54A	316441801		Control,electronic ,dual Element ,(3) ,w/potentiometer			Immediately	$ 326.73
F54B	316441804		Control,electronic ,left Front ,dual Element,w/potentiometer				$ 256.73
F99	316435703		Board,power Supply			Immediately	$ 394.48
FNI	318228864		Harness,wiring ,main ,backguard		Appelez-nous	-
FNI	318224849		Harness,wiring ,timer				$ 150.99
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304447071		Clip,console ,(2)		Appelez-nous	-
