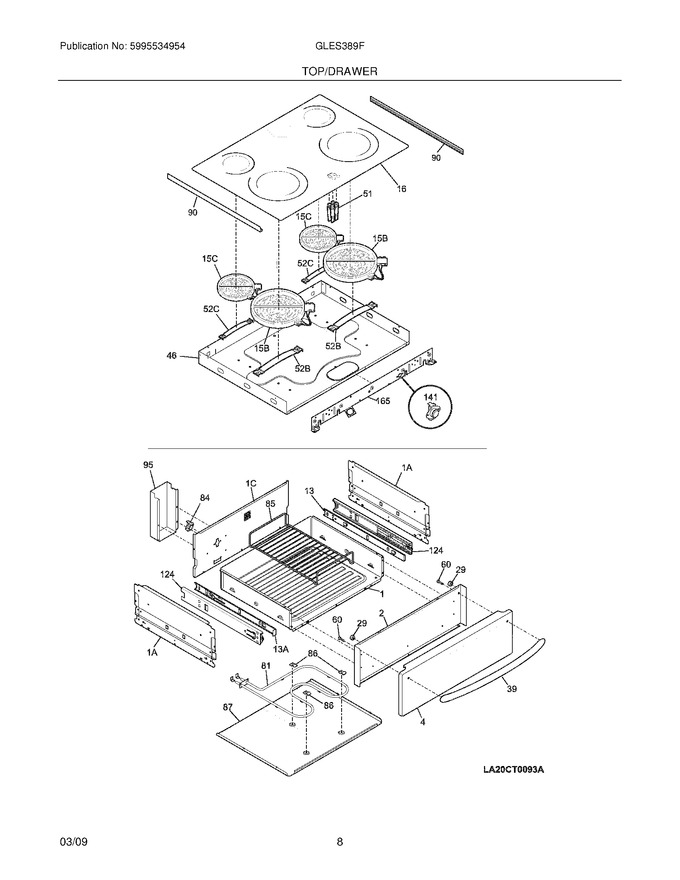

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304401		Drawer,body Assembly		Appelez-nous	-
2	318303901		Panel,drawer ,black ,inner		Appelez-nous	-
4	318299906		Panel,drawer ,white ,front				$ 108.68
13	318259507		Glide,warmer ,inner Rh			Immediately	$ 69.01
16	318223638		Main Top,glass Assy. ,white		Appelez-nous	-
29	318147430		Bumper,(2)				$ 18.95
39	318372410		Handle,door ,white ,w/spacer				$ 121.75
46	318225429		Box,burner				$ 84.21
60	5304459529		Screw,handle Mtg. ,no.10-24 X 1 7/8 ,(2)				$ 10.12
85	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318300102		Panel,warmer Drawer ,lower				$ 106.22
90	318368001		Channel,glass Protector ,(2)				$ 22.98
95	318303800		Shield,wire		Appelez-nous	-
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318227503		Plate,mounting				$ 247.59
13A	318259506		Glide,warmer ,inner Lh				$ 69.01
1A	318300002		Panel,warmer Drawer ,side ,(2)				$ 55.42
1C	318300301		Panel,warmer Drawer ,rear		Appelez-nous	-
52B	318122010		Spring,element Mtg ,3000w				$ 62.51
52C	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
F141	318003634		Thermostat,safety				$ 104.74
F15B	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 138.90
F15C	318198952		Element,surface ,750/1800w ,dual Radiant   (Replaces: 318198936)			Immediately	$ 250.90
F51	318044830		Light,indicator ,natural ,(5)				$ 49.23
F81	318255301		Element,warmer Drawer				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
FNI	318231848		Harness,wiring ,pilot Light		Appelez-nous	-
FNI	318228932		Harness,wiring ,cooktop		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17

    View Diagram in Separate Window       Print Part List
