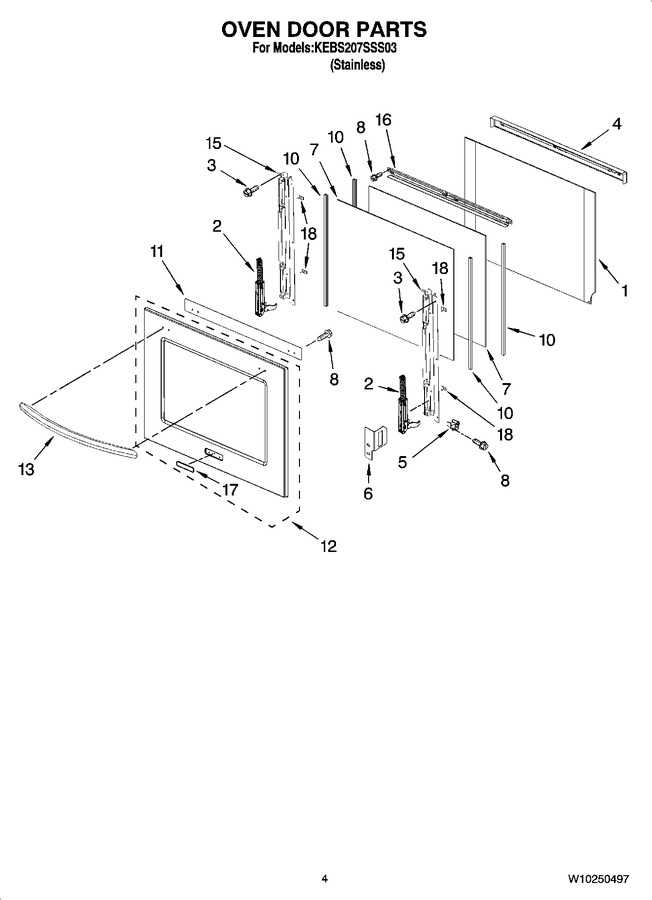

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303737BL		Door Liner		Appelez-nous	-
2	W10174285		Hinge, Door (2)				$ 46.16
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
4	8304581BL		Vent, Door Top				$ 72.64
5	8304378		Bracket, Door (left)				$ 83.98
5	8304377		Bracket, Door (right)				$ 40.81
6	W10137043		Cover, Door Hinge (right)				$ 39.01
6	W10137044		Cover, Door Hinge (left)				$ 38.61
7	8303731		Glass, Inner				$ 98.49
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
10	W10754409		Seal   (Replaces: 8304523)				$ 66.83
11	8304360BL		Bracket, Handle				$ 53.71
12	W10237351		Door Glass, Assy Upper No Nameplate		Appelez-nous	-
12	W10237350		Door Glass, Assy Lower Includes 17		Appelez-nous	-
13	8303774SS		Door Handle		Appelez-nous	-
15	8303745BL		Frame, Door Side (2)				$ 70.23
16	8303746		Door, Top Bracket				$ 91.01
17	8304603SS		Badge, Lower Door				$ 51.11
18	8304522		Bumper, Glass				$ 31.91
