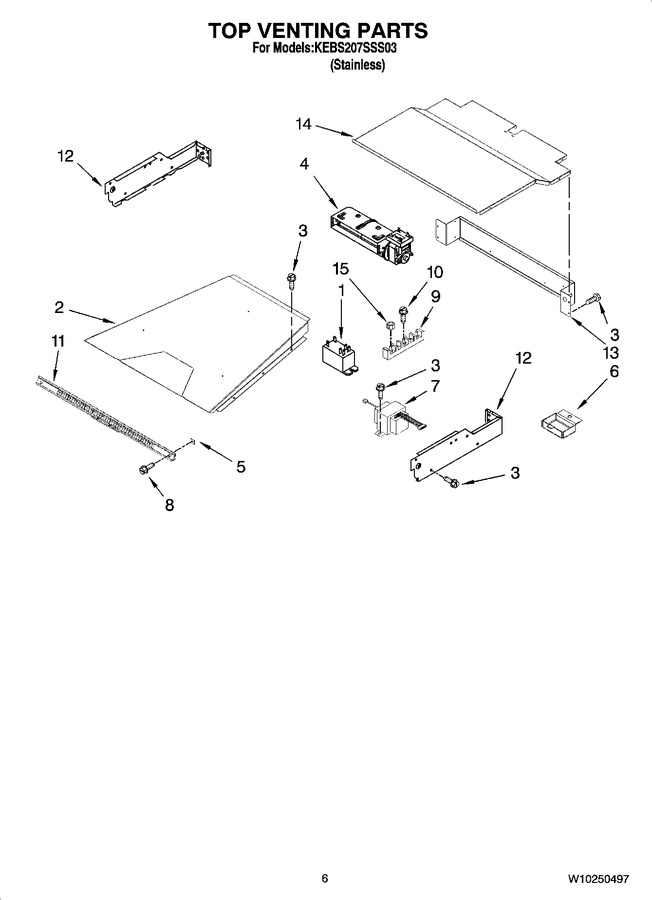

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9752759 | Relay (2) (Replaces: 9752759) |
|
Immediately | $ 172.43 | ||||
| 2 | 8304643 | Duct, Air Outlet |
|
$ 51.64 | |||||
| 3 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 4 | WP8303972 | Blower, 60mm (Replaces: 8303972) |
|
Immediately | $ 276.88 | ||||
| 5 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.16 | |||||
| 6 | W11819303 | Connector, Cover (Replaces: 8285593) |
|
- | |||||
| 7 | WPW10111628 | Transformer, Control (Replaces: W10111628) |
|
$ 254.91 | |||||
| 8 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 6.84 | |||||
| 9 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 10 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 11 | 8303684 | Vent, Control Panel |
|
$ 99.51 | |||||
| 12 | 8304255 | Side, Control Top (left) |
|
$ 36.20 | |||||
| 12 | 8303518 | Side, Control Top (right) |
|
- | |||||
| 13 | 8303520 | Back, Control |
|
$ 33.48 | |||||
| 14 | 8304219 | Cover, Top |
|
$ 52.95 | |||||
| 15 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| W10171563 | Harness, Main |
|
- | ||||||
| 8304051 | Harness, Communication |
|
$ 56.20 | ||||||
| 8304439 | Conduit, Double |
|
- | ||||||
| WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| 4452260 | Spacer, Foam |
|
- | ||||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | ||||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Spray (white) |
|
Immediately | $ 34.39 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 285006 | Paint, Spray (black) (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| W10231531 | Harness, Latch (Replaces: W10143473) |
|
$ 128.67 | ||||||
| W11209404 | Harness, Keyboard (Replaces: W10155291) |
|
$ 102.00 |
