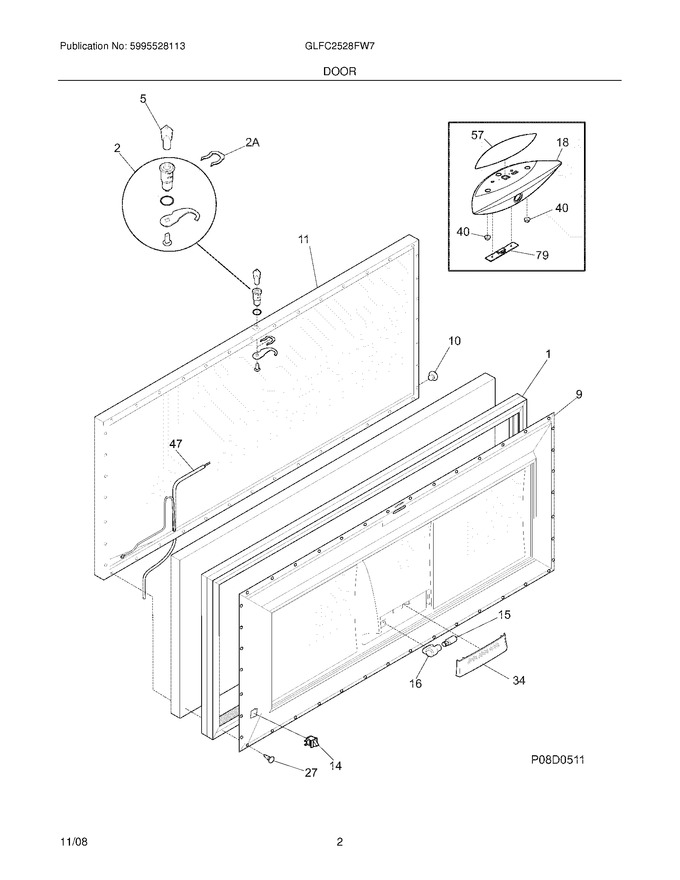

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216469311 | Gasket-door, White (Replaces: 216469301) |
|
$ 187.21 | |||||
| 2 | 297090100 | Lock Assy |
|
$ 21.27 | |||||
| 5 | 297147700 | Key,lock |
|
Immediately | $ 7.57 | ||||
| 9 | 216912900 | Panel-lid,white |
|
$ 137.45 | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216032422 | Lid,white |
|
$ 352.64 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp (Replaces: 216998000) |
|
Immediately | $ 70.16 | ||||
| 15 | 241552802 | Light Bulb/lamp,short (Replaces: 297048600) |
|
Immediately | $ 50.45 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| 18 | 216897600 | Handle,white |
|
$ 60.58 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 34 | 297013900 | Shield,light |
|
$ 35.73 | |||||
| 40 | 216922700 | Fastener,.330 Dia Stud ,handle ,(2) |
|
$ 12.05 | |||||
| 57 | 216899512 | Overlay,decorative |
|
$ 45.36 | |||||
| 2A | 297090900 | Clip,spring |
|
$ 10.85 | |||||
| F47 | 216889600 | Harness-lid |
|
$ 184.91 | |||||
| F79 | 216898700 | Control Board,electronic |
|
$ 58.59 | |||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| NI | 216858001 | Screw,8-18x.50 Ab ,no.10 |
|
Immediately | $ 10.85 | ||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 216905301 | Screw,ph 3-24x.25 ,electronic Assy |
|
$ 14.46 |
