SELECT A DIAGRAM

01 - Cover


03 - Door

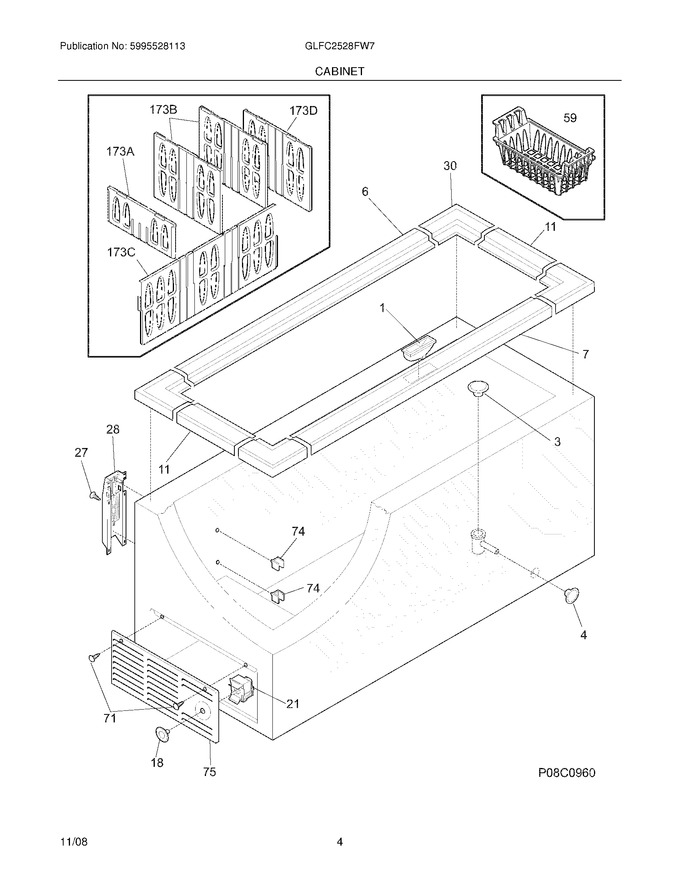

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
6	216955517		Breaker-hinge Side,white				$ 44.05
7	297129500		Breaker,lock Side ,w/lock Catch				$ 51.29
11	216955500		Breaker,chest End ,(2)				$ 15.75
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
28	297274300		Hinge,assy		Appelez-nous	-
30	216110700		Breaker Corners				$ 28.45
59	216916203		Basket,blue/gray ,upper ,(3)				$ 63.95
71	5304460602		Screw,cr Truss Head ,8-18ab X 0.750		Appelez-nous	-
74	216486700		Support,divider ,(4)				$ 51.40
75	216034301		Panel-access, White				$ 103.01
F173	297063303		Divider				$ 114.54
F173	297063001		Divider,chest,step				$ 33.02
F173	297063101		Divider,small Chest				$ 115.97
F173	297073101		Divider,divider End				$ 313.84
F21	216844500		Control-temperature				$ 70.72
NI	216794608		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
