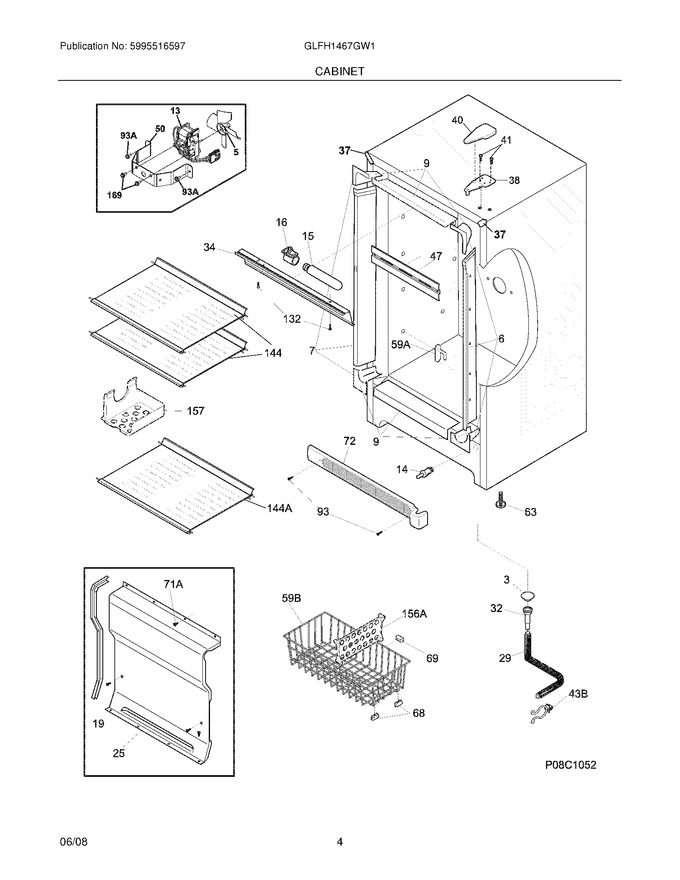

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200300		Breaker Kit W/corners,no Lock Slot				$ 39.69
7	297200500		Breaker Kit W/corners,incl Lock Catch				$ 74.99
9	297200200		Breaker Kit W/corners,28`` ,top And Bottom				$ 45.32
13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Light Bulb/lamp,long ,blue Tint ,40 W ,120v   (Replaces: 216988100)			Immediately	$ 73.06
16	297139500		Socket,light/lamp,25 W   (Replaces: 216817601)				$ 18.08
19	216204900		Gasket, Evap Cover				$ 51.45
25	297098601		Cover-evaporator		Appelez-nous	-
29	5304510365		Hose-drain   (Replaces: 216313504)				$ 13.01
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816222		Shield-light		Appelez-nous	-
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	297283803		Hinge-upper   (Replaces: 297164300)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide Basket (4)				$ 35.25
69	5305878546		Bumper Basket (2)				$ 7.23
72	297036800		Grille/kickplate,28`` ,white				$ 37.76
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
144	297178103		Shelf-assy,fixed,glass ,(2) ,complete				$ 91.62
157	297071900		Shelf,small Items				$ 34.07
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
59A	216486500		Stop-basket,(2)				$ 20.58
59B	216826400		Basket		Appelez-nous	-
71A	297146800		Screw,8-18ab X 0.470 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
F144A	297178104		Shelf-assy,fixed,glass ,complete		Appelez-nous	-
F156A	297071700		Divider,basket		Appelez-nous	-
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216955901		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297088700		Guide-electronic Control		Appelez-nous	-
