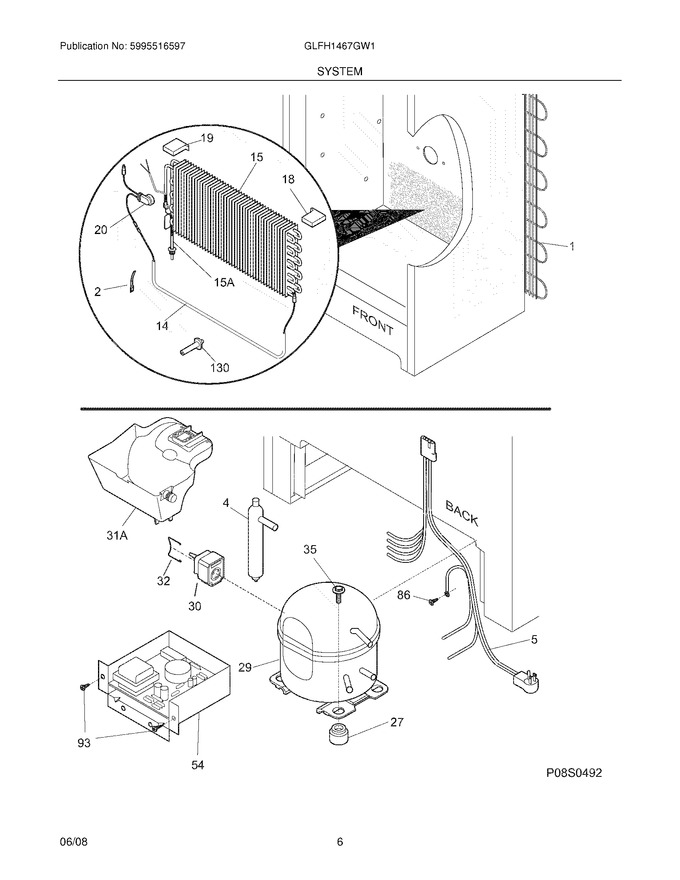

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 14 | 5304496687 | Heater-defrost (Replaces: 216740000) |
|
$ 97.81 | |||||
| 15 | 297414800 | Evaporator (Replaces: 216997200) |
|
$ 145.30 | |||||
| 18 | 297078700 | Insulator-evap,styrofoam |
|
$ 8.14 | |||||
| 19 | 297078800 | Insulator-evap,styrofoam |
|
$ 2.32 | |||||
| 20 | 297216600 | Thermostat,defrost (Replaces: 216872200) |
|
Immediately | $ 27.52 | ||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 297051004 | Controller,compressor |
|
$ 51.82 | |||||
| 32 | 297051100 | Clamp,elec Cont Mtg ,compressor |
|
- | |||||
| 35 | 297177200 | Bolt,compressor |
|
- | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 130 | 297244700 | Support,evaporator Mtg |
|
$ 4.26 | |||||
| 15A | 297348600 | Heat Exchanger (Replaces: 216976200) |
|
$ 120.74 | |||||
| 31A | 216994102 | Pan-drain (Replaces: 216994100) |
|
$ 30.53 | |||||
| F1 | 5300123788 | Condenser |
|
$ 635.80 | |||||
| F29 | 5304507765 | Compressor,w/grommets ,w/o Electricals (Replaces: 297068207) |
|
Immediately | $ 677.23 | ||||
| F5 | 297170000 | Harness-main |
|
$ 203.94 | |||||
| F54 | 216979700 | Electronics,high Voltage |
|
$ 359.30 | |||||
| FNI | 297366805 | Cord-power,flat (Replaces: 297169900) |
|
$ 68.68 | |||||
| NI | 297018400 | Thermistor |
|
Immediately | $ 79.52 | ||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 10.85 | |||||
| NI | 297315800 | Clip (Replaces: 297048400) |
|
$ 10.13 | |||||
| NI | 297014500 | Plug-suction Line |
|
- |
