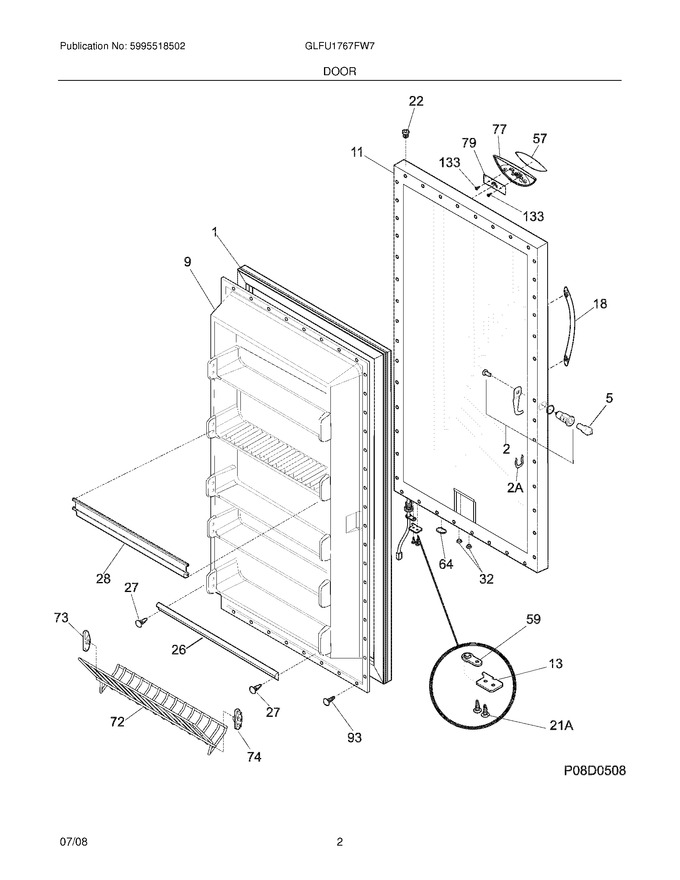

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 188.19
5	297147700		Key,lock			Immediately	$ 7.57
9	216527816		Panel-inner Door,frzr				$ 257.51
11	297250700		Panel-outer Door,white				$ 243.28
13	5303271076		Door Stop				$ 16.30
18	297031800		Handle,upright ,white ,w/set Screw		Appelez-nous	-
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
28	216806100		Rack-door,contour ,(3)				$ 80.59
32	5309950074		Valve, Breather				$ 12.48
57	297072601		Overlay		Appelez-nous	-
59	216974500		Bearing,door Closer				$ 15.54
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297118100		Shelf,tilt Out ,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
77	297072500		Bezel				$ 29.63
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
133	216905301		Screw,ph 3-24x.25 ,electronic Assy				$ 14.46
21A	5304460608		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 13.39
2A	297090900		Clip,spring				$ 10.85
F2	297090000		Lock Assy		Appelez-nous	-
F79	216944300		Control Board,digital				$ 161.94
NI	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216912201		Screw-set,10-32		Appelez-nous	-
