SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

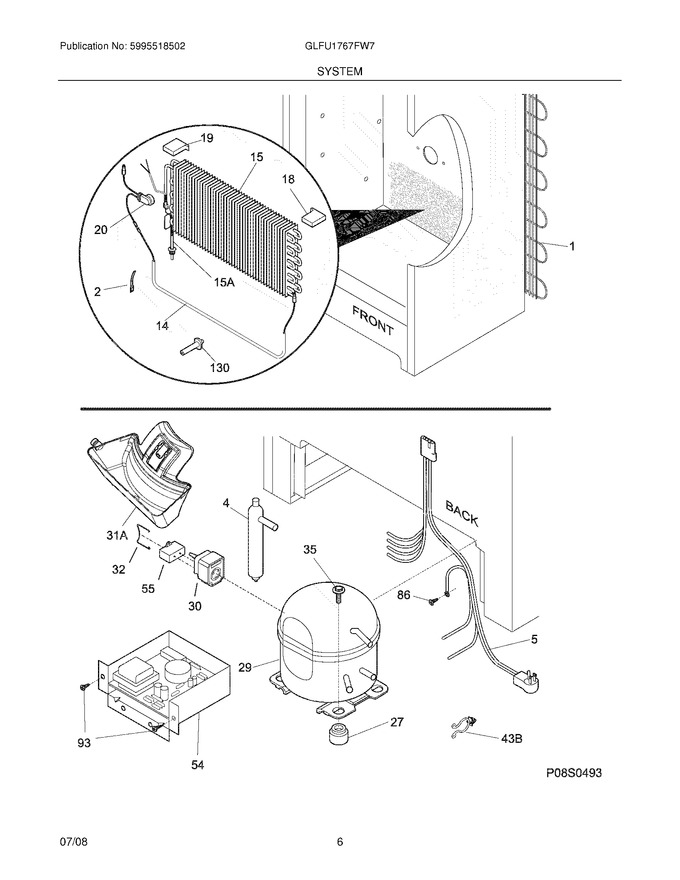

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304507766		Compressor,w/grommets ,w/o Electricals   (Replaces: 297223700)				$ 810.08
30	216954216		Controller,compressor				$ 51.92
32	216954300		Clip,controller				$ 17.01
35	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
55	297286812		Capacitor,run ,12 Mf   (Replaces: 216985002)			Immediately	$ 11.78
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
130	297244700		Support,evaporator Mtg				$ 4.26
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 91.82
31A	297231901		Pan-drain   (Replaces: 297231900)				$ 46.17
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F1	5300083897		Condenser				$ 538.37
F14	216730700		Heater-defrost			Immediately	$ 116.44
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F5	297170000		Harness-main				$ 203.94
F54	216979700		Electronics,high Voltage				$ 359.30
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297018400		Thermistor			Immediately	$ 79.52
NI	297102800		Spacer-tube		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85

    View Diagram in Separate Window       Print Part List
