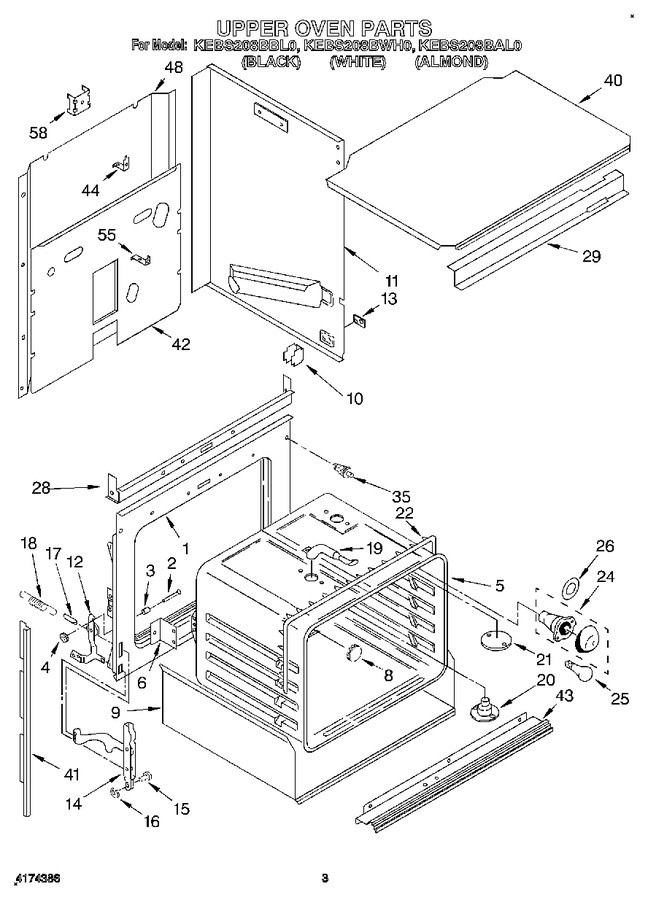

03 - Upper Oven


04 - Lower Oven


05 - Convection Fan


06 - Latch And Vent


07 - Upper And Lower Oven Door


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3176719		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3182031		Oven 30``		Appelez-nous	-
5	311056		Screw (3)		Appelez-nous	-
6	WP681414		Screw (6)   (Replaces: 343641)			Immediately	$ 7.07
6	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
8	3185086		Button, Plug		Appelez-nous	-
9	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
9	3185944		Insulation Tray		Appelez-nous	-
10	311774		Support, Side Wrapper (4)		Appelez-nous	-
10	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
11	WP488729		Side Wrapper (screw,)   (Replaces: 3148107)			Immediately	$ 7.01
11	3185956		Side Wrapper (l.h.)		Appelez-nous	-
11	3185953		Side Wrapper (r.h.)		Appelez-nous	-
12	3185662		Hinge, Ear (right Side)		Appelez-nous	-
12	3185663		Hinge, Ear (left Side)		Appelez-nous	-
13	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 6.98
13	310659		Plate, Side Panel (2)		Appelez-nous	-
14	3185664		Channel Arm (2)				$ 54.97
15	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
16	307594		Retainer Ring (2)		Appelez-nous	-
17	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
18	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
19	3183792		Tube, Vent		Appelez-nous	-
19	WP681414		Screw, Ground   (Replaces: 343641)			Immediately	$ 7.07
20	310839		Eliminator, Smoke		Appelez-nous	-
21	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
21	310662		Plate, Cover		Appelez-nous	-
22	3185197		Seal, Pyro		Appelez-nous	-
24	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
26	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
28	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
28	3183796		Baffle, Top Insulation		Appelez-nous	-
29	3182585		Bracket, Mounting Control Frame		Appelez-nous	-
29	3179847		Screw		Appelez-nous	-
29	312713		Screw		Appelez-nous	-
35	WP681414		Screw   (Replaces: 690989)			Immediately	$ 7.07
35	310345		Switch, Door				$ 94.86
40	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
40	3184099		Cover, Top		Appelez-nous	-
41	3187902		Side Trim (black Model, R.h.)		Appelez-nous	-
41	3187910		Side Trim (almond Model, Lh)		Appelez-nous	-
41	3187908		Side Trim (black Model, L.h.)		Appelez-nous	-
41	3187904		Side Trim (almond Model, Rh)		Appelez-nous	-
41	3187903		Side Trim (white Model, Rh)		Appelez-nous	-
41	3187909		Side Trim (white Model, Lh)		Appelez-nous	-
42	WP488729		Screw (16)   (Replaces: 3148107)			Immediately	$ 7.01
42	3182052		Panel, Back		Appelez-nous	-
43	3188146		Trim, Center Vent (almond Model)		Appelez-nous	-
43	3188144		Trim, Center Vent (black Model)		Appelez-nous	-
43	3188145		Trim, Center Vent (white Model)		Appelez-nous	-
44	311582		Stand Off		Appelez-nous	-
48	3185961		Cover, Rear		Appelez-nous	-
48	WP488729		Screw (9)   (Replaces: 3148107)			Immediately	$ 7.01
55	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
55	309102		Bracket Stand Off		Appelez-nous	-
58	310433		Insulation, Wrap		Appelez-nous	-
58	3149328		Insulation, Top		Appelez-nous	-
58	3182042		Bracket, Motor		Appelez-nous	-
58	3179117		Screw		Appelez-nous	-
58	310435		Insulation, Oven		Appelez-nous	-
