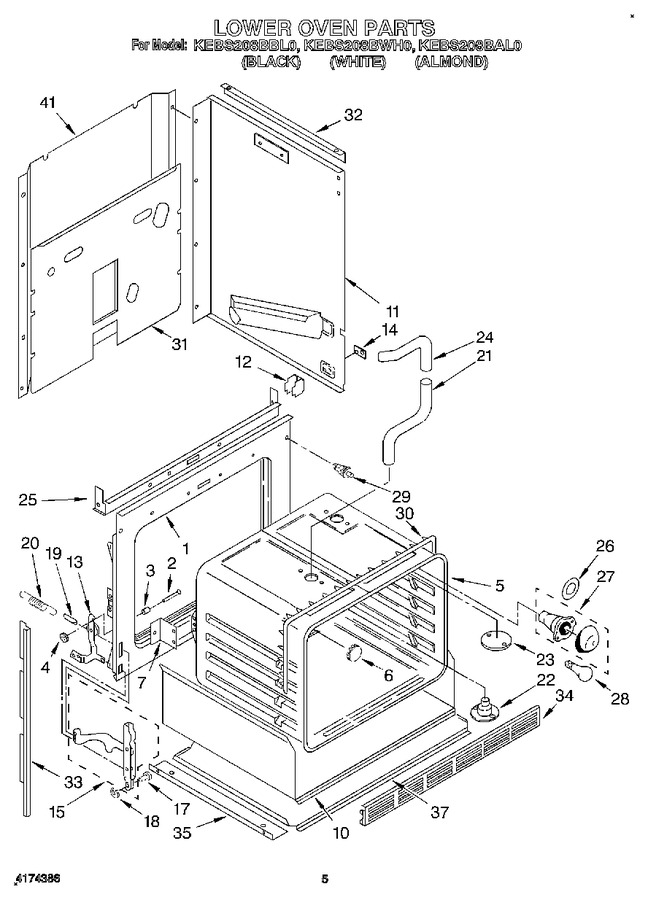

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3176719		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3182031		Oven 30``		Appelez-nous	-
5	311056		Screw (3)		Appelez-nous	-
6	3185086		Button, Plug		Appelez-nous	-
7	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
10	3185944		Insulation Tray		Appelez-nous	-
10	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
11	3185958		Side Wrapper (left Side)		Appelez-nous	-
11	3185955		Side Wrapper (right Side)		Appelez-nous	-
12	311774		Support, Side Wrapper (4)		Appelez-nous	-
12	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
13	3185662		Hinge, Ear (right Side)		Appelez-nous	-
13	3185663		Hinge, Ear (left Side)		Appelez-nous	-
14	310659		Plate, Side Panel (2)		Appelez-nous	-
14	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 6.98
15	3185664		Channel Arm (2)				$ 54.97
17	WP307986		Pin Hinge   (Replaces: 307986)				$ 11.78
18	307594		Retainer, Ring		Appelez-nous	-
19	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
20	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.07
20	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
21	3182159		Tube, Vent (lower)		Appelez-nous	-
22	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
22	310839		Eliminator, Smoke		Appelez-nous	-
23	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
23	310662		Plate, Cover		Appelez-nous	-
24	3182161		Tube, Vent (upper)		Appelez-nous	-
25	3183796		Baffle, Top		Appelez-nous	-
26	3150532		Screw (4)		Appelez-nous	-
26	WP3184533		Gasket, Light Insulation   (Replaces: 3184533)			Immediately	$ 7.73
27	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
28	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
29	310345		Switch, Door				$ 94.86
30	3185197		Seal, Door		Appelez-nous	-
31	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
31	3182052		Panel, Back		Appelez-nous	-
32	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
32	255095		Support Angle (2)		Appelez-nous	-
33	3187911		Side Trim (black Model, L.h.)		Appelez-nous	-
33	3187907		Side Trim (almond Model, Rh)		Appelez-nous	-
33	3187906		Side Trim (white Model, R.h.)		Appelez-nous	-
33	3187905		Side Trim (black Model, R.h.)		Appelez-nous	-
33	3187913		Side Trim (almond Model, Lh)		Appelez-nous	-
33	3187912		Side Trim (white Model, Lh)		Appelez-nous	-
34	3150351		Grill, Bottom (almond)		Appelez-nous	-
34	3150349		Grill, Bottom (black)		Appelez-nous	-
34	3150350		Grill, Bottom (white)		Appelez-nous	-
34	309029		Grill, Bottom (screw, 8-15 X 1/2 Black (3))		Appelez-nous	-
35	311592		Angle, Support (2)		Appelez-nous	-
37	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
37	3185945		Cover, Bottom		Appelez-nous	-
41	310435		Insulation, Oven		Appelez-nous	-
41	3185959		Cover, Rear		Appelez-nous	-
41	WP488729		Screw (11)   (Replaces: 3148107)			Immediately	$ 7.01
41	310433		Insulation, Wrap		Appelez-nous	-
