New Model Search:

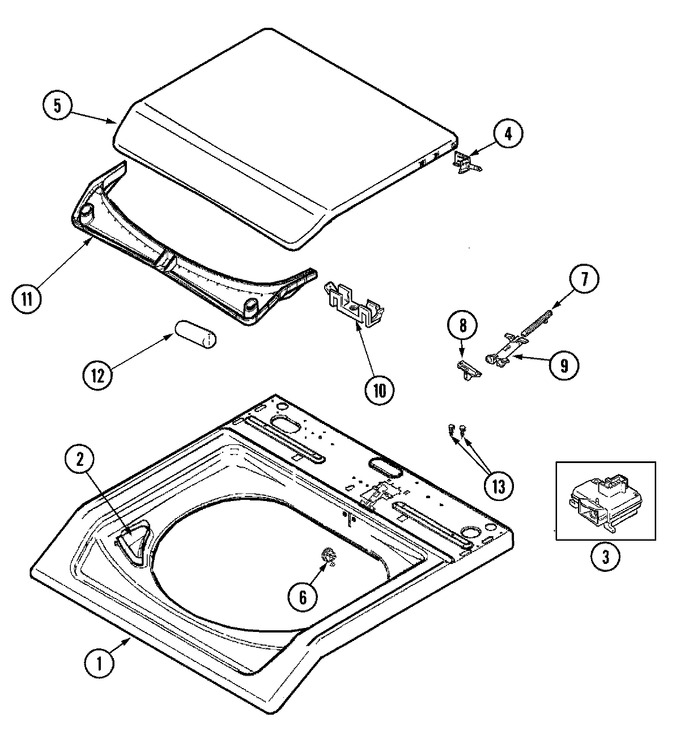

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003468 | Cover, Top (wht-aspkd) | 10 |
|
- | ||||
| 3 | 22003804 | Lid Switch | 10 |
|
$ 45.48 | ||||
| 3 | 2016090 | Screw, Lid Switch To Bracket | 10 |
|
- | ||||
| 5 | 22003411 | Lid, Washer (wht-w/med-aspkd) | 10 |
|
- | ||||
| 6 | 22002753 | Bushing, Hinge | 10 |
|
$ 5.84 | ||||
| 7 | WP22002754 | Plunger (Replaces: 22002754) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | WP22002757 | Guide Tube (Replaces: 22002757) | 10 |
|
Immediately | $ 7.18 | |||
| 9 | 00489128 | Screw (Replaces: Y705026) | 10 |
|
$ 773.97 | ||||
| 10 | 22001920 | Fuse (10a) | 10 |
|
- | ||||
| 10 | 22001921 | Holder, Fuse | 10 |
|
- | ||||
| 10 | WP693995 | Screw (Replaces: 22003538) | 10 |
|
Immediately | $ 6.47 | |||
| 12 | 22001396 | Clip, Capacitor | 10 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | 22001857 | Capacitor (220v 50c) | 10 |
|
- | ||||
| 13 | WP489128 | Screw, Bracket To Cabinet (Replaces: 22003217) | 10 |
|
$ 9.79 |
