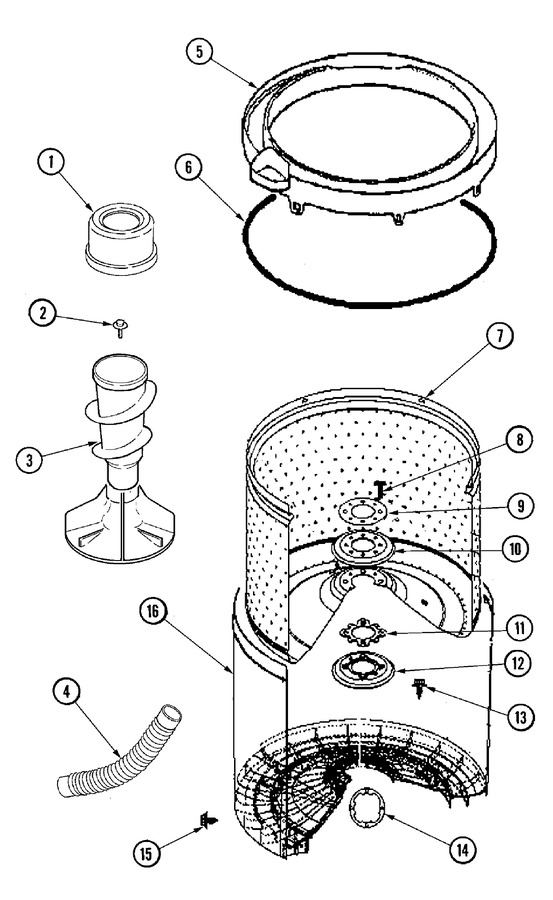

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003985 | Softener Dispenser Assembly | 10 |
|
- | ||||
| 2 | WPW10309247 | Screw, Agitator Retention (Replaces: 25-7948) | 10 |
|
$ 32.57 | ||||
| 3 | 22004043 | Agitator/auger Assy (as Pk) |
|
$ 149.04 | |||||
| 4 | 22003285 | Hose, Tub To Pump |
|
$ 23.22 | |||||
| 5 | 22002736 | Tub Cover Assy. (tub Top) | 10 |
|
- | ||||
| 5 | 22004241 | Top, Spinner Assy As Pk | 18 |
|
- | ||||
| 6 | 35-2328 | Seal, Tub Top | 10 |
|
$ 49.43 | ||||
| 7 | 22003557 | Spinner (stnls) | 10 |
|
- | ||||
| 7 | 22004240 | Crimped Spinner Assy As Pk | 18 |
|
- | ||||
| 7 | 22003237 | Air Dome Hose | 10 |
|
- | ||||
| 8 | WP3400504 | Screw, Shoulder (Replaces: 25-7967) | 10 |
|
$ 6.47 | ||||
| 9 | 22003430 | Washer, Nylon | 10 |
|
$ 25.61 | ||||
| 10 | 22003378 | Ring, Top Insulating | 10 |
|
- | ||||
| 11 | 22003595 | Gasket, Isolator (foam) | 10 |
|
$ 37.09 | ||||
| 12 | 22003434 | Gasket, Hub/bottom Isolator | 10 |
|
$ 5.56 | ||||
| 12 | 22003433 | Ring, Insulating Bottom | 10 |
|
- | ||||
| 13 | WP22002947 | Bolt, Tub (Replaces: 22002947) | 10 |
|
$ 10.51 | ||||
| 14 | 35-3686 | Gasket, Tub To Housing | 10 |
|
$ 5.85 | ||||
| 15 | WP22002933 | Screw (Replaces: 22002933) | 10 |
|
$ 6.91 | ||||
| 16 | 22002742 | Tub, Outer | 10 |
|
$ 217.12 | ||||
| 17 | 22003458 | Block, Tub (atl) | 10 |
|
- |
