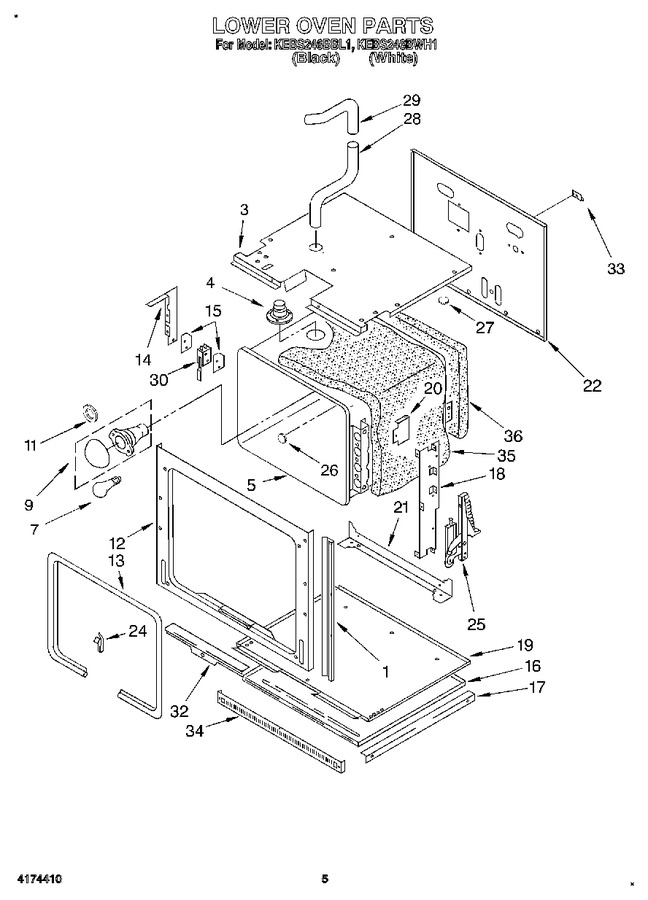

03 - Lower Oven
04 - Latch And Vent
05 - Unit
06 - Upper And Lower Oven Door
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187875 | Trim, Door Side (2) (black Model) |
|
- | |||||
| 1 | 3187878 | Side Trim, Door (2) (white Model) |
|
- | |||||
| 3 | 3185647 | Screw |
|
- | |||||
| 3 | 3183747 | Module, Top |
|
- | |||||
| 4 | 3181699 | Tube, Vent |
|
- | |||||
| 4 | 3185648 | Screw (3) |
|
- | |||||
| 4 | 3185647 | Screw |
|
- | |||||
| 5 | 3185561 | Liner, Oven |
|
- | |||||
| 7 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 9 | W11594027 | Oven Light Assy. (Replaces: 3150505) |
|
Immediately | $ 78.31 | ||||
| 11 | WP3184533 | Gasket, Light (Replaces: 3184533) |
|
Immediately | $ 7.73 | ||||
| 12 | 3188162 | Frame, Door |
|
- | |||||
| 13 | 3179814 | Seal, Door |
|
- | |||||
| 14 | WP3177991 | Screw (2) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 14 | 3177681 | Bracket, Switch |
|
- | |||||
| 15 | 3177923 | Insulator, Switch |
|
- | |||||
| 16 | 3177552 | Bottom, Oven |
|
- | |||||
| 17 | 3179220 | Rail, Support (2) |
|
- | |||||
| 17 | 3185647 | Screw |
|
- | |||||
| 18 | 3177433 | Bracket, Hinge (2) |
|
- | |||||
| 18 | 3179795 | Screw (6) |
|
- | |||||
| 18 | 3185647 | Screw |
|
- | |||||
| 19 | 3177622 | Bottom, Module |
|
- | |||||
| 20 | 3178612 | Shield, Radiation |
|
- | |||||
| 20 | 3185647 | Screw |
|
- | |||||
| 21 | 3177434 | Support, Oevn |
|
- | |||||
| 21 | 3185647 | Screw |
|
- | |||||
| 22 | 3185647 | Screw |
|
- | |||||
| 22 | 3177559 | Back, Module |
|
- | |||||
| 24 | 3179848 | Clip, Seal (3) |
|
- | |||||
| 25 | 3178298 | Hinge, Door (2) |
|
- | |||||
| 26 | 3185085 | Button, Plug |
|
- | |||||
| 27 | 3182814 | Button, Plug |
|
- | |||||
| 28 | 3182159 | Tube, Vent |
|
- | |||||
| 28 | 3185647 | Screw |
|
- | |||||
| 29 | 3182160 | Tube, Vent |
|
- | |||||
| 30 | 4173553 | Switch, Door |
|
- | |||||
| 30 | 313489 | Screw (2) |
|
- | |||||
| 30 | 4159117 | Nut (2) |
|
- | |||||
| 32 | 4168863 | Screw |
|
- | |||||
| 32 | 3179587 | Retainer, Seal |
|
- | |||||
| 33 | 4168203 | Cover, Cap Tube |
|
- | |||||
| 33 | 4159445 | Screw |
|
- | |||||
| 34 | 3187958 | Trim, Lower Vent (white Model) |
|
- | |||||
| 34 | 3177784 | Trim, Lower Vent (black Model) |
|
- | |||||
| 35 | 3185550 | Insulation, Wrap |
|
- | |||||
| 36 | 3177870 | Insulation, Back |
|
- |
