SELECT A DIAGRAM
01 - Control Panel, Lit/optional
02 - Upper Oven
03 - Lower Oven

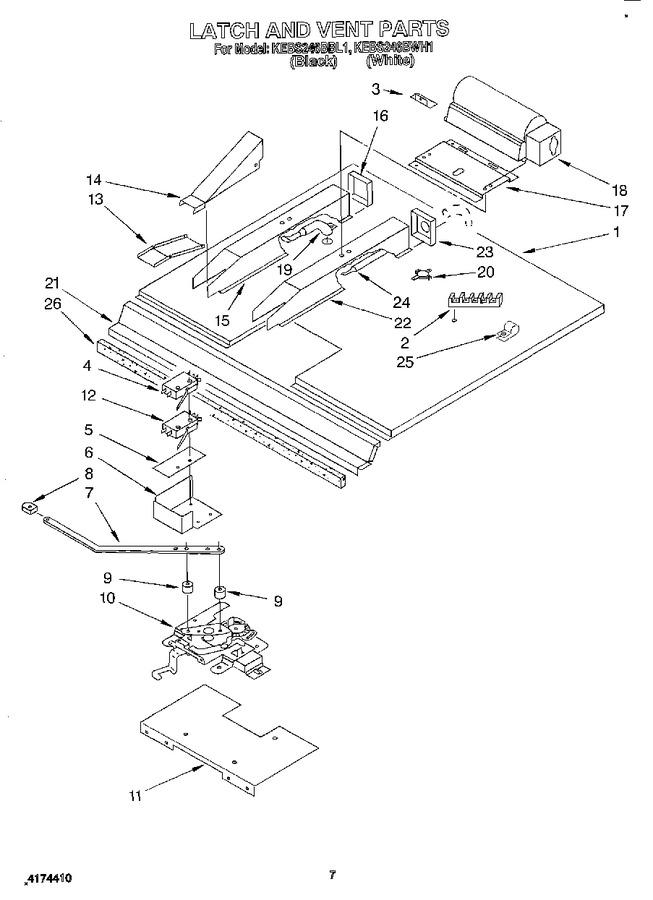

04 - Latch And Vent
05 - Unit
06 - Upper And Lower Oven Door
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183747 | Module, Top |
|
- | |||||
| 2 | 308043 | Screw (2) |
|
- | |||||
| 2 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 2 | 3185647 | Screw |
|
- | |||||
| 3 | 311773 | Screw |
|
- | |||||
| 3 | 3185455 | Baffle |
|
- | |||||
| 4 | 3178668 | Switch, Latch |
|
- | |||||
| 4 | 98106 | Screw (2) |
|
- | |||||
| 5 | 3178185 | Insulator, Switch |
|
- | |||||
| 6 | 3177662 | Guard, Latch |
|
- | |||||
| 6 | WP3177991 | Screw (2) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 7 | 313570 | Handle, Latch (clamp, Tube) |
|
- | |||||
| 7 | 3185414 | Handle, Latch (screw, 10-24 (2)) |
|
- | |||||
| 7 | 3181963 | Handle, Latch (lower Oven) |
|
- | |||||
| 7 | 3177969 | Handle, Latch (upper Oven) |
|
- | |||||
| 7 | 3185647 | Handle, Latch (screw (3)) |
|
- | |||||
| 8 | 3183294 | Screw |
|
- | |||||
| 8 | 3184039 | Knob, Latch Handle |
|
- | |||||
| 9 | 3184037 | Screw (2) |
|
- | |||||
| 9 | 3184040 | Spacer, Latch Handle |
|
- | |||||
| 10 | 3178410 | Latch, Mechanism |
|
- | |||||
| 11 | 3177496 | Plate, Mounting |
|
- | |||||
| 11 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 12 | 3183784 | Switch, Latch |
|
- | |||||
| 13 | 3183954 | Nozzle, Vent Bottom (2) |
|
- | |||||
| 14 | 3183955 | Nozzle, Vent Top (2) |
|
- | |||||
| 15 | 3183999 | Box, Vent Upper Oven |
|
- | |||||
| 15 | 4173231 | Screw |
|
- | |||||
| 16 | 3185647 | Screw |
|
- | |||||
| 16 | 3183964 | End, Vent Box |
|
- | |||||
| 17 | WP3177991 | Screw (4) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 17 | 3183533 | Bracket, Mounting Fan |
|
- | |||||
| 18 | 3183720 | Blower, Fan |
|
- | |||||
| 19 | 4173231 | Screw |
|
- | |||||
| 19 | 3183791 | Tube, Vent Upper Oven |
|
- | |||||
| 20 | 3149650 | Spst Thermostat |
|
- | |||||
| 20 | 3185647 | Screw |
|
- | |||||
| 21 | 4159035 | Bushing |
|
- | |||||
| 21 | 3183799 | Shield, Heat |
|
- | |||||
| 22 | 4173231 | Screw |
|
- | |||||
| 22 | 3183953 | Box, Vent Lower Oven |
|
- | |||||
| 22 | 3179116 | Screw, 8-18 |
|
- | |||||
| 23 | 3183965 | End, Vent Box |
|
- | |||||
| 23 | 3185647 | Screw |
|
- | |||||
| 24 | 3183793 | Tube, Vent Lower Oven |
|
- | |||||
| 24 | 3185647 | Screw |
|
- | |||||
| 25 | 3185647 | Screw |
|
- | |||||
| 25 | 3183532 | Clamp, Tube |
|
- | |||||
| 26 | 313755 | Seal, Foam |
|
- |
