New Model Search:

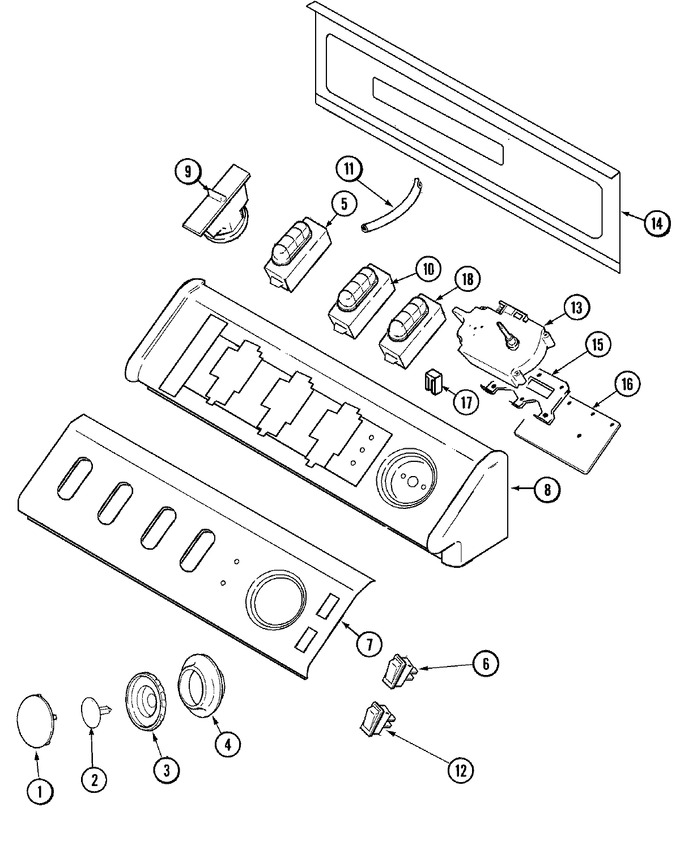

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 2 | 22002997 | Pin, Locking | 10 |
|
- | ||||
| 3 | 22002996 | Knob, Timer (gry) | 10 |
|
- | ||||
| 4 | 22002995 | Skirt, Timer Knob (wht) | 10 |
|
- | ||||
| 5 | 22002999 | Switch (4 Button Temp) (wht) | 10 |
|
$ 188.97 | ||||
| 6 | 22002720 | Switch, Rocker | 10 |
|
- | ||||
| 7 | 22003872 | Control Panel, Facia / White | 10 |
|
- | ||||
| 8 | 33002286 | Console (wht) | 10 |
|
- | ||||
| 8 | WP489128 | Screw (Replaces: 22002925) | 10 |
|
$ 9.79 | ||||
| 9 | 22002705 | Switch, Pressure | 10 |
|
$ 79.45 | ||||
| 9 | 22003461 | Pad, Pressure Switch | 10 |
|
- | ||||
| 10 | 22003386 | Switch, Four Button - Bsq | 10 |
|
- | ||||
| 11 | 22003237 | Air Dome Hose | 10 |
|
- | ||||
| 12 | 22002719 | Switch, Rocker----na | 10 |
|
- | ||||
| 13 | 22003500 | Timer | 10 |
|
$ 192.63 | ||||
| 14 | Y22002339 | Screw | 10 |
|
- | ||||
| 14 | 22002529 | Console Back Panel | 10 |
|
- | ||||
| 15 | 22003003 | Bracket, Atc / Timer | 10 |
|
- | ||||
| 16 | 22003009 | Board, Control | 10 |
|
- | ||||
| 17 | 903115 | Lock Light | 10 |
|
$ 5.70 | ||||
| 17 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.42 |
