New Model Search:

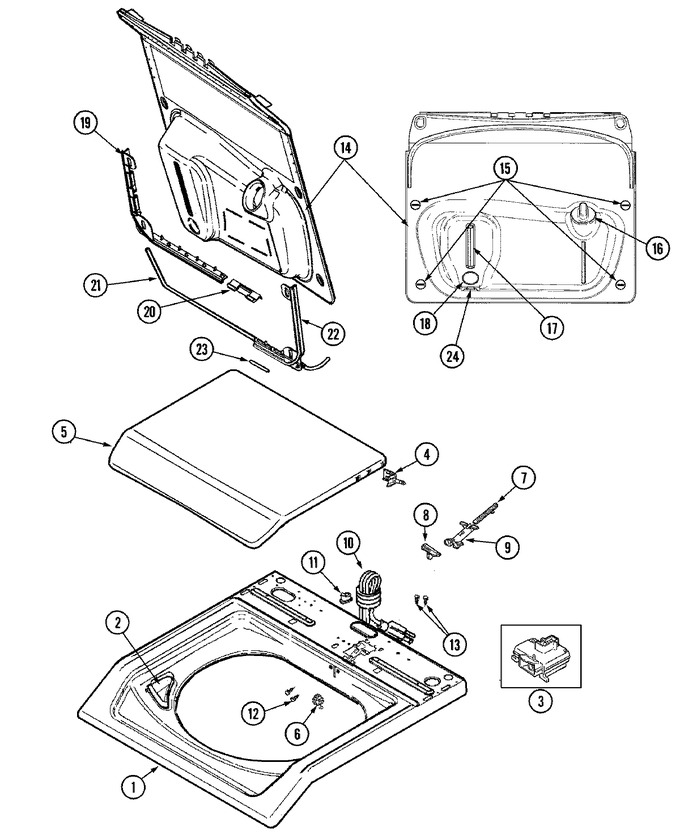

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003468 | Cover, Top (wht-aspkd) | 10 |
|
- | ||||
| 2 | 22002835 | Cup, Bleach (wht) | 10 |
|
$ 5.83 | ||||
| 3 | 22003804 | Lid Switch | 10 |
|
$ 45.48 | ||||
| 4 | WP22002751 | Hinge Pin (wht) (Replaces: 22002751) | 10 |
|
Immediately | $ 7.05 | |||
| 5 | 22003411 | Lid, Washer (wht-w/med-aspkd) | 10 |
|
- | ||||
| 6 | 22002753 | Bushing, Hinge | 10 |
|
$ 5.84 | ||||
| 7 | WP22002754 | Plunger (Replaces: 22002754) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | W10814230 | Cam, Lid (wht) (Replaces: 22002755) | 10 |
|
Immediately | $ 7.25 | |||
| 9 | WP22002757 | Guide Tube (Replaces: 22002757) | 10 |
|
Immediately | $ 7.18 | |||
| 10 | 22002776 | Slider, Sight Glass | 10 |
|
- | ||||
| 11 | 22002777 | Plunger Valve Assembly | 10 |
|
- | ||||
| 12 | 2016090 | Screw, Lid Switch To Bracket | 10 |
|
- | ||||
| 13 | 00489128 | Screw (Replaces: Y705026) | 10 |
|
$ 773.97 | ||||
| 14 | 22003796 | Dosing Lid Retro Fit Kit | 10 |
|
- | ||||
| 15 | 22002774 | Lock, Twist | 10 |
|
- | ||||
| 16 | 22002775 | Cap | 10 |
|
- | ||||
| 17 | 22002771 | Retainer, Torsion Rod (lt) | 10 |
|
- | ||||
| 18 | 22002772 | Support, Ctr. (torsion Rod) | 10 |
|
- | ||||
| 19 | 22002842 | Torsion Rod | 10 |
|
- | ||||
| 20 | 22002843 | Retainer, Torsion Rod (rt) | 10 |
|
- | ||||
| 21 | 22002844 | Bearing, Torsion Rod | 10 |
|
- | ||||
| 22 | 22002779 | Retainer, Plunger Valve (clip) | 10 |
|
- |
