SELECT A DIAGRAM

01 - Control Panel, Lit/optional

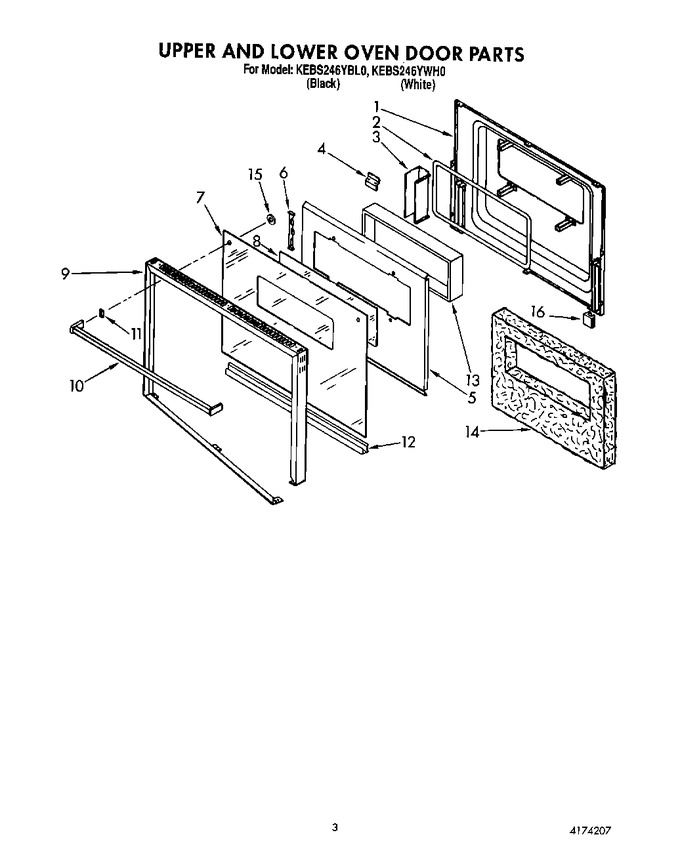

02 - Upper And Lower Oven Door


03 - Upper Oven


04 - Lower Oven, Optional


05 - Latch And Vent


06 - Unit


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3177597		Liner, Door		Appelez-nous	-
1	4168863		Screw (6)		Appelez-nous	-
2	3178584		Seal, Window		Appelez-nous	-
3	3179694		Spacer, Window		Appelez-nous	-
4	3148443		Screw		Appelez-nous	-
4	3177831		Latch, Strike		Appelez-nous	-
5	3148443		Screw		Appelez-nous	-
5	3177719		Retainer, Insulation		Appelez-nous	-
6	4163855		Bracket, Glass Mounting (2)		Appelez-nous	-
6	3148443		Screw		Appelez-nous	-
7	3181549		Glass, Door		Appelez-nous	-
8	4164243		Glass, Reflective		Appelez-nous	-
9	3181403		Frame, Door		Appelez-nous	-
10	3182164		Handle, Door		Appelez-nous	-
10	3181637		Screw (2)		Appelez-nous	-
11	3178001		Screw, Black (4)		Appelez-nous	-
11	3182138		Spacer (2)		Appelez-nous	-
13	4164235		Window Package		Appelez-nous	-
14	3180094		Insulation		Appelez-nous	-
15	3181651		Bushing, Door Handle		Appelez-nous	-
15	247326		Screw, 10-24 X 1/2		Appelez-nous	-
16	3181701		Bumper, Door Glass		Appelez-nous	-
