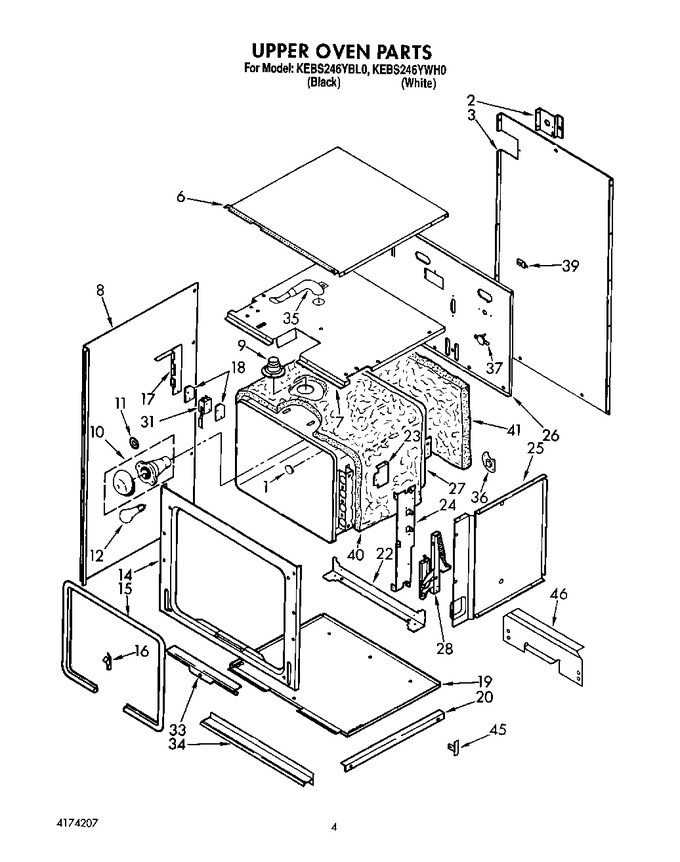

03 - Upper Oven
04 - Lower Oven, Optional
05 - Latch And Vent
06 - Unit
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3185085 | Button, Plug (2) |
|
- | |||||
| 2 | 3177545 | Bracket, Conduit |
|
- | |||||
| 2 | 4159372 | Screw |
|
- | |||||
| 3 | WP90767 | Screw (14) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 3 | 3177624 | Cabinet, Back |
|
- | |||||
| 6 | WP90767 | Screw (5) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 6 | 3178139 | Cabinet, Top |
|
- | |||||
| 7 | WP90767 | Screw (8) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 7 | 3183747 | Module, Top |
|
- | |||||
| 8 | WP90767 | Side, Cabinet (screw (i0)) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 8 | 3177440 | Side, Cabinet (right Hand) |
|
- | |||||
| 8 | 3177438 | Side, Cabinet (left Hand) |
|
- | |||||
| 9 | 3179117 | Screw (3) |
|
- | |||||
| 9 | 3181699 | Tube, Vent |
|
- | |||||
| 10 | W11594027 | Oven Light Assy. (Replaces: 3150505) |
|
Immediately | $ 78.31 | ||||
| 12 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 14 | 3177698 | Frame, Front |
|
- | |||||
| 15 | 3179814 | Seal, Door |
|
- | |||||
| 16 | 3179848 | Clip, Oven Seal |
|
- | |||||
| 17 | 3177681 | Bracket, Switch |
|
- | |||||
| 18 | 3177923 | Insulator, Switch |
|
- | |||||
| 19 | 3177622 | Bottom, Module |
|
- | |||||
| 20 | WP90767 | Screw (4) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 20 | 3179220 | Rail, Support (2) |
|
- | |||||
| 22 | 3177434 | Support, Oven |
|
- | |||||
| 22 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 23 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 23 | 3178612 | Shield, Radiation |
|
- | |||||
| 24 | 3178000 | Screw (6) |
|
- | |||||
| 24 | 3177433 | Bracket, Hinge |
|
- | |||||
| 24 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 25 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 25 | 3177572 | Side, Module (r.h. & L.h.) |
|
- | |||||
| 26 | WP90767 | Screw (8) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 26 | 3177559 | Back, Module |
|
- | |||||
| 27 | 3177470 | Liner, Oven |
|
- | |||||
| 28 | 3178298 | Hinge, Door (2) |
|
- | |||||
| 28 | 3179795 | Screw (4) |
|
- | |||||
| 31 | 313489 | Screw (2) |
|
- | |||||
| 31 | 4173553 | Switch, Door |
|
- | |||||
| 31 | 4159117 | Nut (2) |
|
- | |||||
| 33 | 3179776 | Screw (4) |
|
- | |||||
| 33 | 3179587 | Retainer, Seal |
|
- | |||||
| 33 | W11233072 | Screw (Replaces: 4159450) |
|
Immediately | $ 12.62 | ||||
| 34 | 3181966 | Vent, Middle Trim |
|
- | |||||
| 34 | 4168863 | Screw (2) |
|
- | |||||
| 34 | 3180022 | Screw (4) |
|
- | |||||
| 35 | 3183791 | Vent, Tube |
|
- | |||||
| 37 | WP90767 | Screw (2) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 37 | 3149652 | Spst Thermostat |
|
- | |||||
| 39 | 4159445 | Screw |
|
- | |||||
| 39 | 4168203 | Cover, Cap Tube |
|
- | |||||
| 40 | 3177865 | Insulation, Wrap |
|
- | |||||
| 41 | 3177870 | Insulation, Back |
|
- | |||||
| 44 | 4163883 | Cover Plate, Rotisserie |
|
- | |||||
| 44 | WP3177991 | Screw, 8-18 (4) (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 45 | 3181733 | Insert, Middle Vent Trim (2) |
|
- | |||||
| 45 | 4173601 | Screw (2) |
|
- | |||||
| 46 | 3182584 | Bracket, Mounting Control Panel |
|
- |
