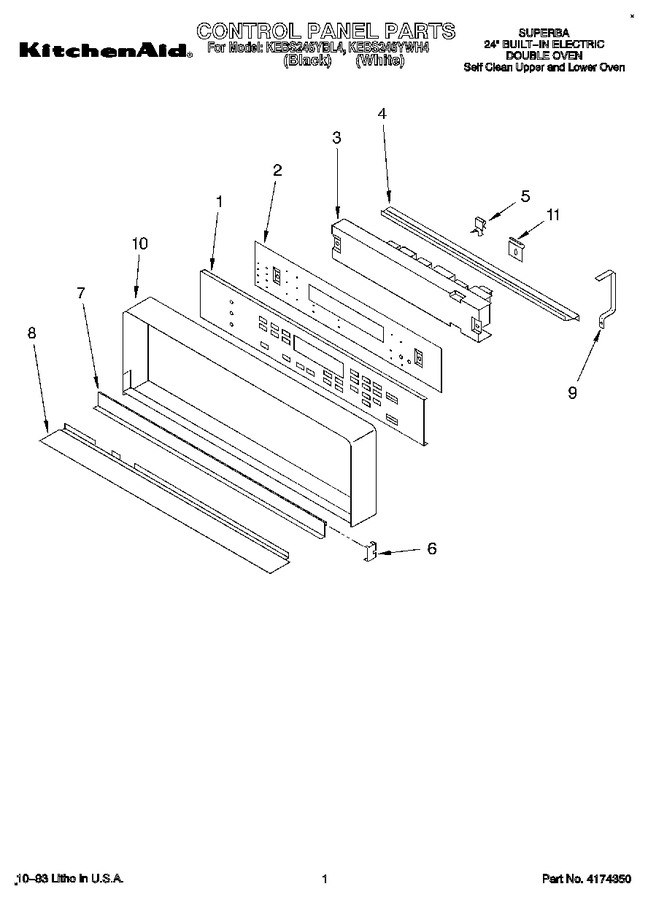

01 - Control Panel, Lit/optional
02 - Upper Oven
03 - Lower Oven
04 - Latch And Vent
05 - Unit
06 - Upper And Lower Oven Door
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3184777 | Membrane, Switch (white Model) |
|
- | |||||
| 1 | 3181775 | Membrane, Switch (black Model) |
|
- | |||||
| 2 | 3181889 | Bracket, Mounting Switch Membrane |
|
- | |||||
| 3 | 3181706 | Microcomputer |
|
- | |||||
| 4 | 3183705 | Retainer, Bracket |
|
- | |||||
| 4 | 3182939 | Screw (2) |
|
- | |||||
| 5 | 3182985 | Clip, Retainer |
|
- | |||||
| 6 | 3182162 | Trim, Door (2) |
|
- | |||||
| 7 | 3179847 | Door, Latch Handle (screw (2)) |
|
- | |||||
| 7 | 3182150 | Door, Latch Handle (black Model) |
|
- | |||||
| 7 | 3182153 | Door, Latch Handle (white Model) |
|
- | |||||
| 8 | 3185647 | Screw |
|
- | |||||
| 8 | 3183701 | Trim, Panel |
|
- | |||||
| 9 | 3184321 | Bracket (2) |
|
- | |||||
| 9 | 3182939 | Screw (2) |
|
- | |||||
| 10 | 3182147 | Frame, Control Panel |
|
- | |||||
| 11 | 3184567 | Clip, Control Frame |
|
- | |||||
| 832985 | Rack, Cooking (bi-level) |
|
- | ||||||
