SELECT A DIAGRAM

01 - Control Panel, Lit/optional


02 - Upper Oven


03 - Lower Oven


04 - Latch And Vent


05 - Unit


06 - Upper And Lower Oven Door


07 - Wiring Harness

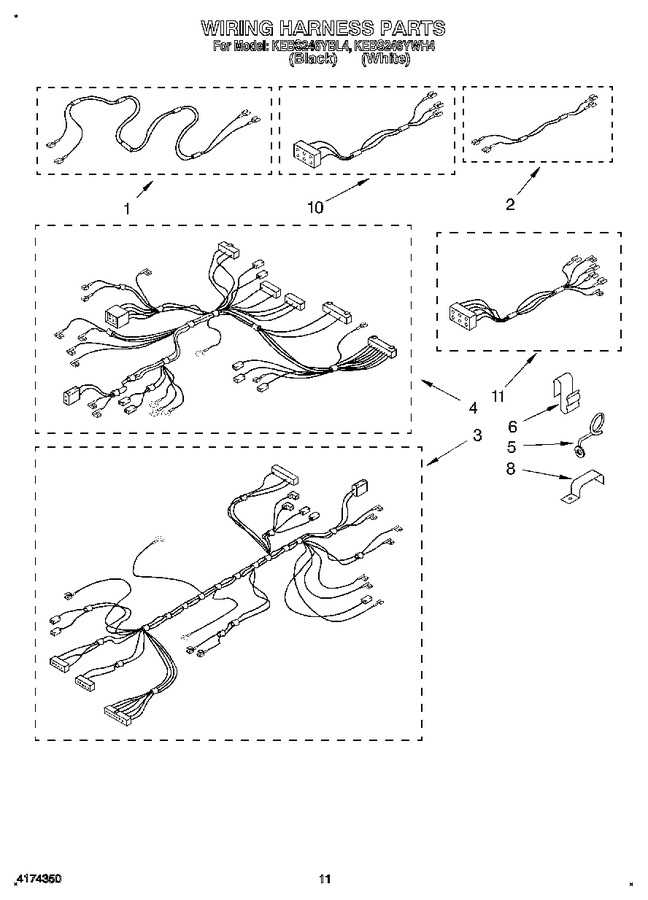

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187607		Harness Wire (door Switch Upper)		Appelez-nous	-
2	3183656		Harness Wire (door Switch Lower)		Appelez-nous	-
3	3185950		Harness Wire (lower Oven)		Appelez-nous	-
4	3185965		Harness Wire (upper Oven)		Appelez-nous	-
5	254225		Screw,		Appelez-nous	-
5	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
5	3185647		Screw		Appelez-nous	-
5	3179668		Standoff, Wire		Appelez-nous	-
6	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
8	7111P002-60		Clamp, Wire   (Replaces: 4159037)		Appelez-nous	-
10	3183361		Harness, Wire Latch Assy. (lower Oven)		Appelez-nous	-
11	3185952		Harness, Wire Latch Assy. (upper Oven		Appelez-nous	-
