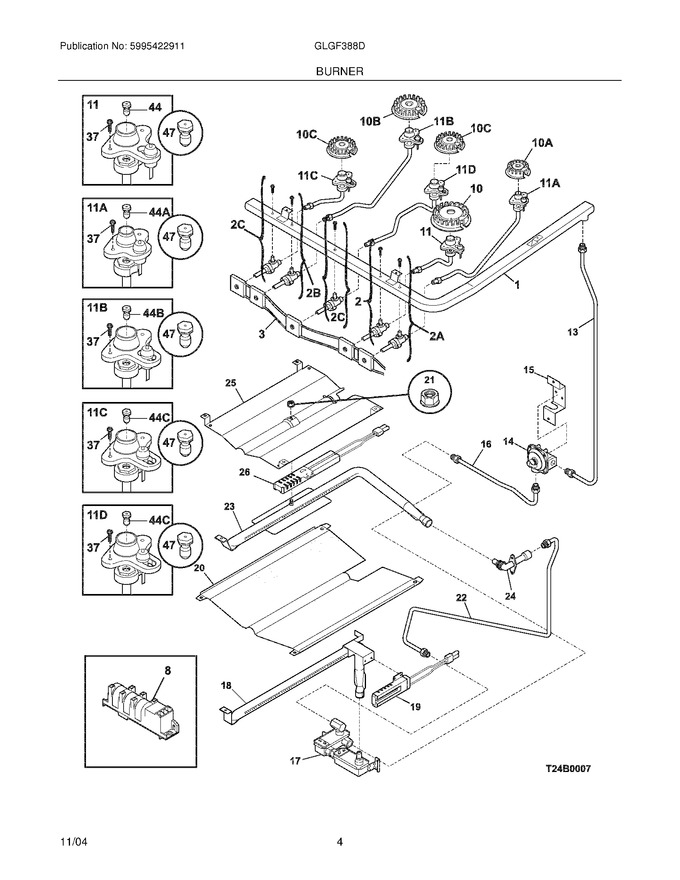

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 808608804 | Module,spark (Replaces: 318079001) |
|
Immediately | $ 76.06 | ||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 20 | 5304519024 | Baffle,oven Burner (Replaces: 316401401) |
|
Immediately | $ 80.39 | ||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 25 | 316401301 | Baffle,broil Burner |
|
$ 173.57 | |||||
| 37 | 316240600 | Screw,assy Mtg ,ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 44 | 316237912 | Orifice,top Burner ,16k |
|
- | |||||
| 47 | GRLP3 | Lp Conversion Kit,w/instructions (Replaces: GRLP2) |
|
$ 57.11 | |||||
| 44A | 316237903 | Orifice-top Burner,5k |
|
$ 67.83 | |||||
| 44B | 316237901 | Orifice,top Burner ,12k |
|
$ 64.46 | |||||
| 44C | 316237902 | Orifice,top Burner ,9.5k |
|
$ 65.22 | |||||
| F1 | 316219501 | Pipe,manifold |
|
$ 121.70 | |||||
| F10 | 316223300 | Burner,sealed ,17k |
|
$ 117.66 | |||||
| F10A | 316206400 | Burner,sealed ,5k |
|
- | |||||
| F10B | 316212300 | Burner,sealed ,12k |
|
$ 105.95 | |||||
| F10C | 316212400 | Burner,sealed ,9.5k |
|
Immediately | $ 32.62 | ||||
| F11 | 316430500 | Ignitor/orifice Assy.,top Burner , |
|
$ 182.86 | |||||
| F11A | 316430800 | Ignitor/orifice Assy.,top Burner , |
|
- | |||||
| F11B | 316430401 | Ignitor/orifice Assy.,top Burner , |
|
$ 203.14 | |||||
| F11C | 316237805 | Ignitor/orifice Assy.,top Burner ,front (Replaces: 316237800) |
|
$ 132.71 | |||||
| F11D | 316430700 | Ignitor/orifice Assy.,top Burner , |
|
$ 132.71 | |||||
| F13 | 316405300 | Tube,3/8 ,aluminum ,rgltr To Manf , |
|
- | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| F16 | 5304507348 | Tube,valve To Regul. ,3/8 (Replaces: 316405500) |
|
Immediately | $ 47.03 | ||||
| F17 | 316404900 | Valve,safety |
|
Immediately | $ 394.35 | ||||
| F18 | 316404400 | Burner,oven |
|
$ 109.10 | |||||
| F19 | 5304534663 | Ignitor,oven Burner (Replaces: 316428500) |
|
Immediately | $ 107.87 | ||||
| F2 | 5303935233 | Valve,17k Burner ,w/mtg Screw |
|
$ 64.24 | |||||
| F22 | 316405400 | Tube,valve To Mixer |
|
- | |||||
| F23 | 316404300 | Burner,broiler |
|
$ 235.98 | |||||
| F24 | 5304516894 | Elbow,mixer (Replaces: 316409700) |
|
$ 87.21 | |||||
| F26 | 5303935066 | Ignitor,burner (Replaces: 316428600) |
|
Immediately | $ 59.58 | ||||
| F2A | 5303935235 | Valve,5k Burner ,w/mtg Screw |
|
$ 100.13 | |||||
| F2B | 5303935232 | Valve,9.5k/12k Burner ,w/mtg Screw |
|
$ 121.19 | |||||
| F2C | 5303935234 | Valve,9.5k Burner ,w/mtg Screw |
|
$ 83.06 | |||||
| F3 | 316219006 | Wiring Harness,w/igntr Switch |
|
$ 100.59 | |||||
| NI | 5303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
Immediately | $ 13.46 | ||||
| NI | 08068018 | Shield,wire ,safety Valve |
|
- | |||||
| NI | 316401500 | Cover,broil Ignitor |
|
$ 12.89 | |||||
| NI | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| NI | 316248105 | Instructions,lp Kit |
|
- | |||||
| NI | 316253702 | Wiring Harness,ignitor Module |
|
$ 113.30 | |||||
| NI | 316064103 | Wire,ground Assembly |
|
- | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316021104 | Screw`hex ,8-18 X 3/8 `nick `(3) ` |
|
$ 7.79 |
