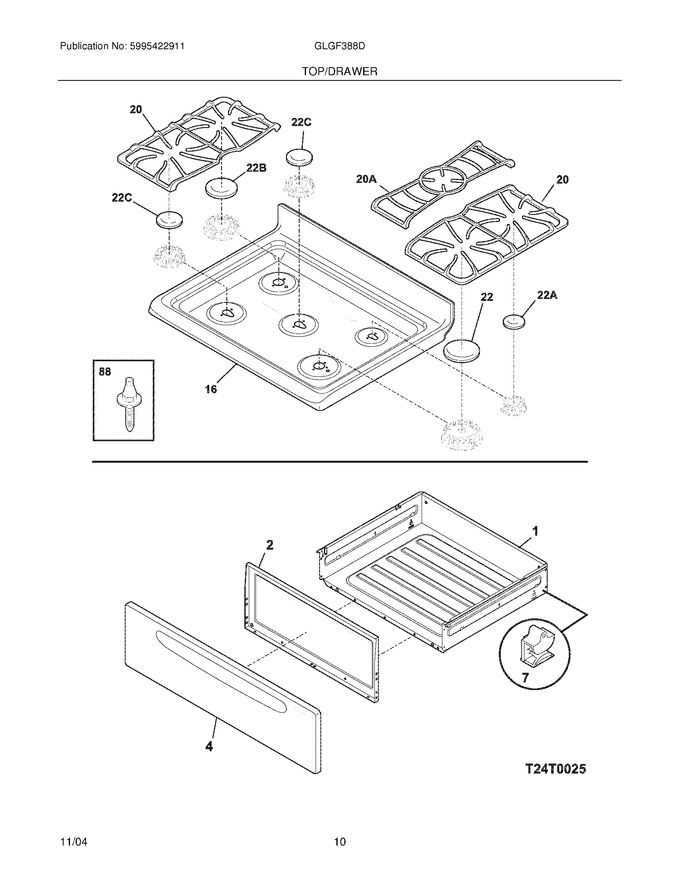

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408701)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	316403402		Panel,drawer ,black ,front				$ 43.33
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316411216		Maintop,black				$ 223.13
20	316424601		Grate,black ,(2)				$ 279.14
22	316271900		Cap,16k Burner ,black				$ 170.91
88	316099500		Pin,guide ,(2)				$ 6.53
20A	316424801		Grate,center ,black				$ 319.99
22A	316206600		Cap,5k Burner ,black				$ 96.39
22B	316213600		Cap,12k Burner ,black				$ 130.08
22C	316213500		Cap,9.5k Burner ,black				$ 43.23
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
