SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional

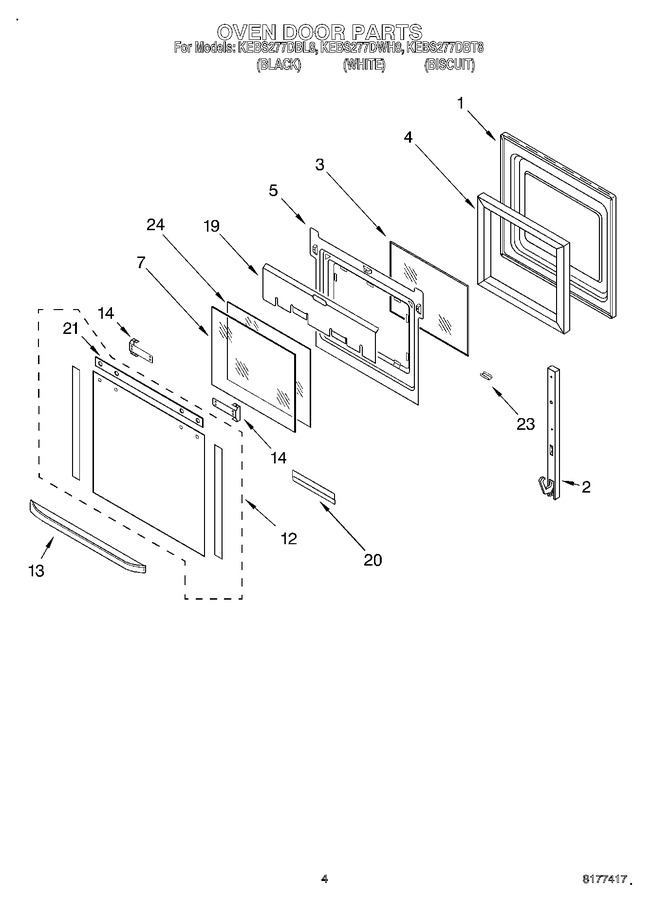

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451718		Door Liner		Appelez-nous	-
2	WP4455523		Hinge, Door   (Replaces: 4454946)				$ 59.67
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4451721		Insulation, Door				$ 37.62
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451670		Retainer, Glass		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 178.55
12	4452071		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452146		Door Glass, Assy (biscuit)		Appelez-nous	-
12	4452072		Door Glass, Assy (white Model)		Appelez-nous	-
13	4448412		Door Handle (white)		Appelez-nous	-
13	4448411		Door Handle (black)		Appelez-nous	-
13	4452128		Door Handle (biscuit)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
19	4450361		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451668		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	4451673		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit)		Appelez-nous	-
23	4450864		Retainer, Clip (white)		Appelez-nous	-
24	4455256		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
