01 - Oven
02 - Control Panel, Literature
03 - Oven Door

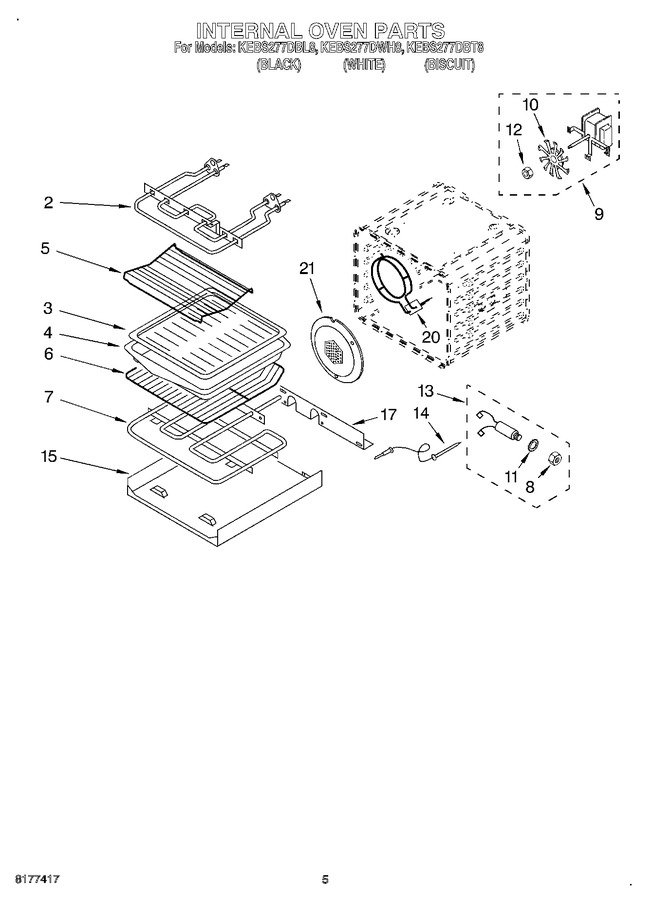

04 - Internal Oven
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WPW10207400 | Element, Broil (Replaces: 4452156) |
|
Immediately | $ 247.31 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 3 | 4396923 | Grill, Broiler (Replaces: 3147563) |
|
Immediately | $ 52.04 | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 52.04 | ||||
| 5 | 3181534 | Rack, Roasting |
|
- | |||||
| 6 | 4448715 | Rack, Oven |
|
$ 80.66 | |||||
| 7 | 4451175 | Element, Bake (Replaces: 4452155) |
|
Immediately | $ 126.84 | ||||
| 8 | WP9755546 | Nut, Hex (Replaces: 4448881) |
|
$ 6.26 | |||||
| 9 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 9 | 4451583 | Convection Motor |
|
$ 140.53 | |||||
| 10 | 4452226 | Blade, Fan |
|
$ 30.89 | |||||
| 11 | WP9755547 | Washer, Lock (Replaces: 4448882) |
|
$ 5.49 | |||||
| 12 | 4452227 | Nut |
|
$ 33.98 | |||||
| 13 | 8186589 | Jack, Meat Probe (Replaces: 4451355) |
|
Immediately | $ 97.22 | ||||
| 14 | WP9755542 | Probe, Meat (Replaces: 4448948) |
|
Immediately | $ 82.91 | ||||
| 15 | 4455036 | Tray, Bake |
|
$ 76.60 | |||||
| 17 | 4450039 | Cover, Bake Tray |
|
$ 78.95 | |||||
| 17 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 20 | WP9760769 | Element, Convection (Replaces: 4452157) |
|
Immediately | $ 289.61 | ||||
| 21 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 21 | WPW10160821 | Cover, Fan (Replaces: 4448418) |
|
$ 244.79 |
