Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	665T188P02		Spacer, Bodyside (8)		Appelez-nous	-
3	3200793		Pnl-bodyside Lh-almond		Appelez-nous	-
4	3051109		Burner Box		Appelez-nous	-
5	3131101		Cover, Plate		Appelez-nous	-
6	3131567		Back, Main		Appelez-nous	-
7	3051400		Shield-lwr Wall		Appelez-nous	-
8	3051501		Cover-lwr Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	3131973		Rack, Oven (2)		Appelez-nous	-
11	636M004P01		Screw, Level (4)		Appelez-nous	-
12	3131570		Cvr. Hng. Cutout (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	3131569		Channel Dr Hng (2)		Appelez-nous	-
15	3051104		Bottom, Oven		Appelez-nous	-
16	3051147		Fuse-therm. Cutout		Appelez-nous	-
17	3013568		Broiler Pan		Appelez-nous	-
18	3131356		Insert, Broiler Pan		Appelez-nous	-
19	709T031P01		Terminal Block		Appelez-nous	-
20	711T048P01		Ground Strap		Appelez-nous	-
21	145T025P01		Clip-therm Bulb (2)				$ 1.76
22	3051162		Glide Dwr. (2)			Immediately	$ 8.22
23	3051367		Clip-wire		Appelez-nous	-
24	3015372		Cover - Front Main		Appelez-nous	-
25	3051390		Insul-btm		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	662T042P01		Socket-oven Light		Appelez-nous	-
28	3051190		Bottom-oven Removable		Appelez-nous	-
29	3051343		Tube-oven Light		Appelez-nous	-
30	374T018P05		Bulb-oven Light		Appelez-nous	-
*21715	3051387		Cover-rear Wall		Appelez-nous	-
27A	3131201		Insul-wrap (non-illustrated)		Appelez-nous	-
27B	3131200		Insul-back (non-illustrated)		Appelez-nous	-
27C	3131903		Bumper				$ 55.36
27D	636T163P01		Screw-hng Mtg (6) (non-illustrated)		Appelez-nous	-
27E	479T069P41		Nut-hex Brass (6) (non-illustrated)		Appelez-nous	-
3A	3200790		Pnl-bodyside Rh-almond		Appelez-nous	-

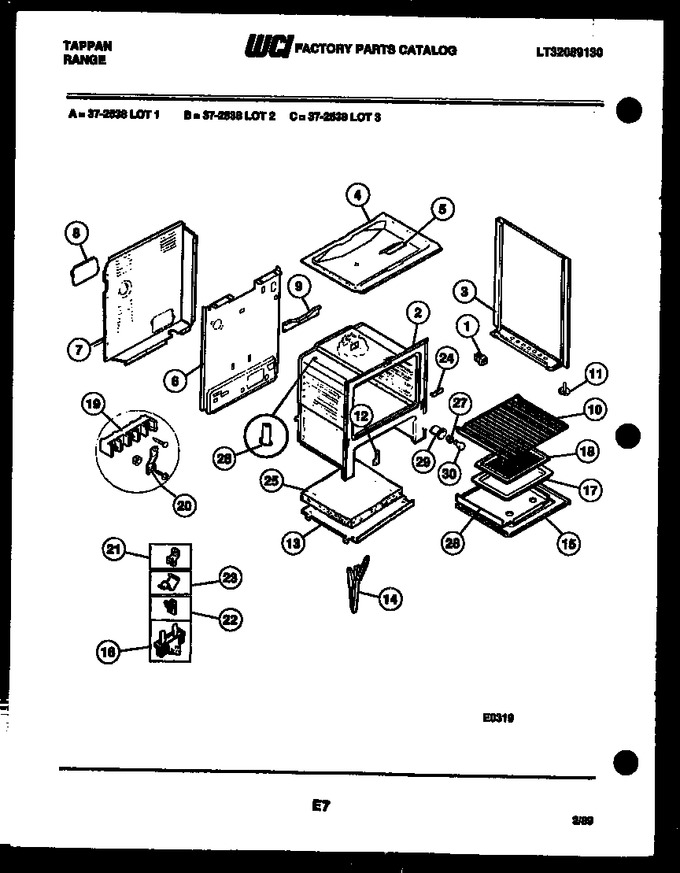

    View Diagram in Separate Window       Print Part List
