Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3178512 Plate, Mounting Appelez-nous -
2 4173193 Screw (3) Appelez-nous -
3 4173194 Lockwasher (3) Appelez-nous -
5 4173237 Nut (left Hand) Appelez-nous -
6 4173236 Fan Appelez-nous -
7 3182088 Motor Appelez-nous -
8 4173238 E-ring Appelez-nous -
9 4173185 Bracket Guard Appelez-nous -
10 4173230 Flat Washer Appelez-nous -
11 3179790 Gasket, Foam Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

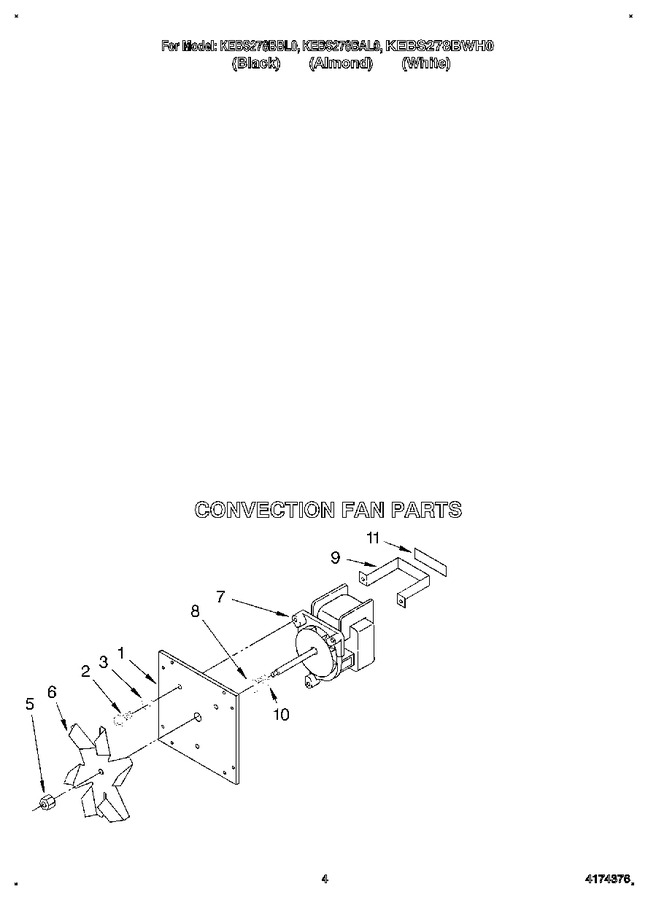

Diagram for KEBS278BWH0
