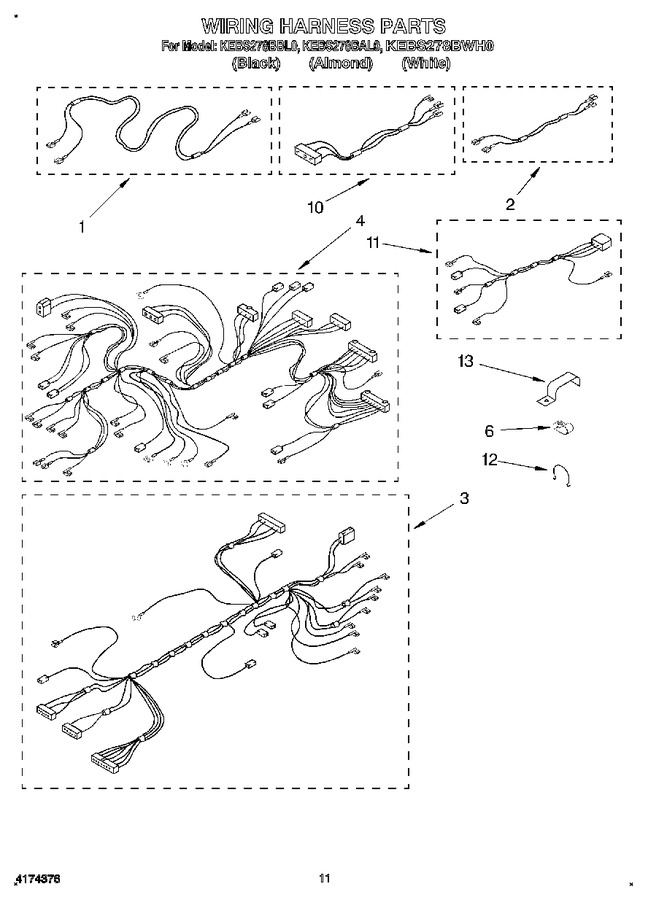

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187607		Harness Wire (door Switch Upper Light)		Appelez-nous	-
2	3183656		Harness Wire (door Switch Lower Light)		Appelez-nous	-
3	3187611		Harness Wire (lower Oven)		Appelez-nous	-
4	3187858		Harness Wire (upper Oven)		Appelez-nous	-
6	3185647		Screw		Appelez-nous	-
6	3179668		Standoff, Wire		Appelez-nous	-
6	WP112432		Nut, Hex (3)   (Replaces: 112432)				$ 7.16
10	3187608		Harness, Wire Latch Assy. Upper Oven		Appelez-nous	-
11	3187609		Harness, Wire Latch Assy. Lower Oven		Appelez-nous	-
12	16515		Clip   (Replaces: 313438)				$ 17.60
13	7111P002-60		Clamp, Wire   (Replaces: 4159037)		Appelez-nous	-
