Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10216219 Panel, Control Special Order $ 119.03

2 8303687 Support Appliance Manager Special Order $ 52.29

4 W10016010 Control Panel, Glass Touch Special Order $ 269.84

5 W10143289 User Interface Special Order $ 483.23

6 8303719 Backer, Control Special Order $ 41.30

7 8303887 Bracket,enclosure Special Order $ 7.82

8 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

9 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 6.98

10 W10160958 Appliance Manager Special Order $ 318.40

11 8304441 Resistor, Drop Special Order $ 61.98

12 W10134765 Vapor, Stop Special Order $ 50.59

13 WP3400805 Screw   (Replaces: 3400805) Special Order $ 6.47


    View Diagram in Separate Window     Print Icon   Print Part List

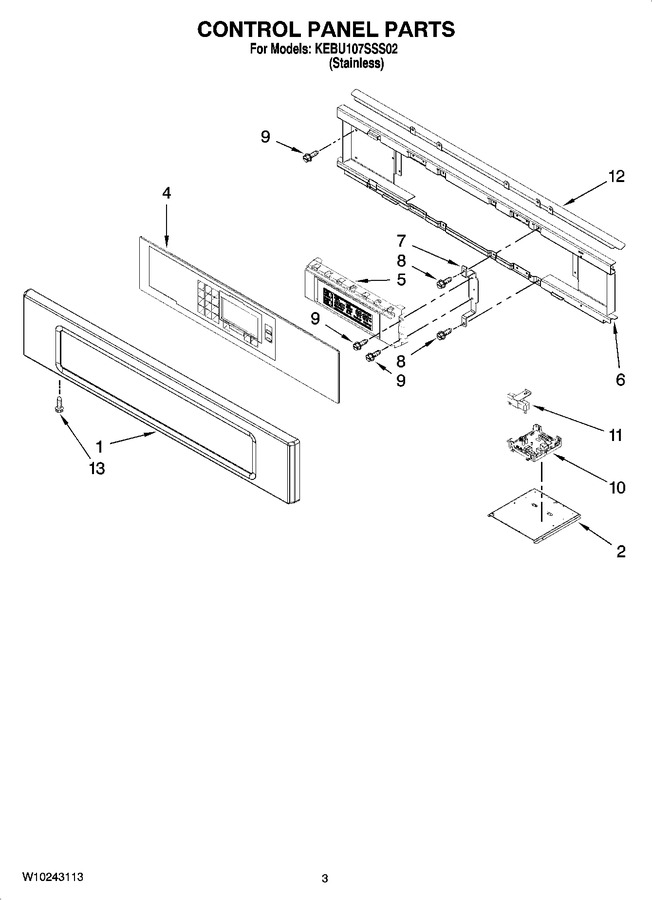

Diagram for KEBU107SSS02
