View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts

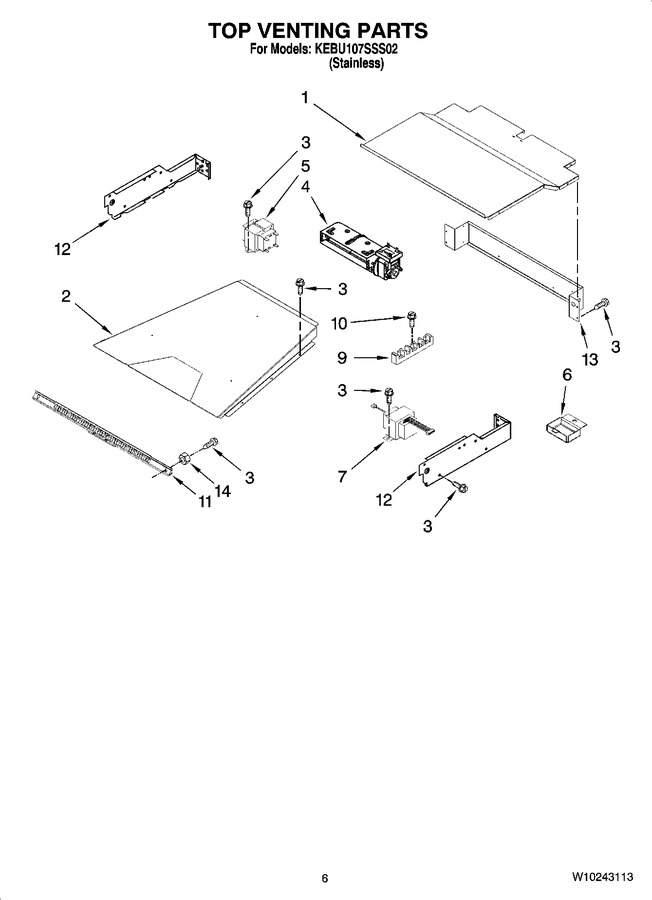

05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8304219 | Cover, Top |
|
$ 52.95 | |||||
| 2 | 8304643 | Duct, Air Outlet |
|
$ 51.64 | |||||
| 3 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 4 | WP8303972 | Blower (Replaces: 8303972) |
|
Immediately | $ 276.88 | ||||
| 5 | WP9760588 | Transformer, Lights (Replaces: 9760588) |
|
$ 237.07 | |||||
| 6 | W11819303 | Connector, Cover (Replaces: 8285593) |
|
- | |||||
| 7 | 9762885 | Transformer, Control |
|
$ 174.77 | |||||
| 9 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 10 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 11 | 8303684 | Vent, Control Panel |
|
$ 99.51 | |||||
| 12 | 8304255 | Side, Control Top (left) |
|
$ 36.20 | |||||
| 12 | 8303518 | Side, Control Top (right) |
|
- | |||||
| 13 | 8303520 | Back, Control |
|
$ 33.48 | |||||
| 14 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.16 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | ||||||
| 8212695 | Filter, Cartridge (Replaces: W10111330) |
|
$ 205.76 | ||||||
| W10051680 | Reducer, Stem |
|
$ 54.62 | ||||||
| WPW10049700 | Filter, Assembly (Replaces: W10049700) |
|
$ 313.21 | ||||||
| W10076960 | Elbow, Plug In |
|
$ 29.24 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Spray (white) |
|
Immediately | $ 34.39 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 285006 | Paint, Spray (black) (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| W10231531 | Harness, Latch (Replaces: W10143473) |
|
$ 128.67 | ||||||
| W10157925 | Harness, Main |
|
$ 271.20 | ||||||
| 8304318 | Communication, Harness |
|
Immediately | $ 103.07 | |||||
| 8304611 | Conduit, Single |
|
$ 95.57 | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 |
