Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303209761 Panel-sidl-lh Dryer (white) Appelez-nous -
2 3204948 Panel-top (white) Appelez-nous -
3 3017111 Panel-rear Appelez-nous -
4 08015820 Pane--front Appelez-nous -
5 5364154013 Clamp Appelez-nous -
6 3204951 Duct Rear Appelez-nous -
7 3016426 Panel-ventilation Appelez-nous -
8 5303285470 Screw Appelez-nous -
9 3161234 Screw Appelez-nous -
10 5303285470 Screw-heater Appelez-nous -
11 3017890 Screw-duct (10) Appelez-nous -
12 3016427 Door-outer (white) Appelez-nous -
13 5303285455 Handle - Door Special Order $ 58.96

14 3204952 Cover-exhaust (white) Appelez-nous -
15 3016433 Door-inner (white) Appelez-nous -
16 5308015856 Thermostat - Safety Appelez-nous -
17 5303209763 Panel-side Rh (white) Appelez-nous -
18 3205942 Hinge Bar Appelez-nous -
20 3204959 Hinge-door (2) Appelez-nous -
21 3204961 Panel-front (white) Appelez-nous -
22 5303206877 Seal - Door Appelez-nous -
23 5303211089 Screw (4) Appelez-nous -
24 3204965 Lid (white) Appelez-nous -
26 3204362 Grommet-hinge Appelez-nous -
27 3016439 Spring-latch Appelez-nous -
28 5308006553 Screw Appelez-nous -
29 5303207099 Panel-top (white) Appelez-nous -
30 5303161187 Screw Appelez-nous -
31 131390000 Lid Strike   (Replaces: 3204970) Special Order $ 55.19

32 3204973 Panel-front (white) Appelez-nous -
34 5303283018 Base Appelez-nous -
35 5303272067 Leveling Leg (4) Appelez-nous -
36 3204980 Panel-rear Appelez-nous -
37 3204368 Screw Special Order $ 13.01

38 3161452 Coupler Special Order $ 34.39

39 3161237 Rivet Appelez-nous -
40 3204981 Bumper (2) Appelez-nous -
41 08001578 Screw (9) Appelez-nous -
42 5303207399 Screw Appelez-nous -
43 3204983 Dispenser-bleach Appelez-nous -
44 08011280 Screw Appelez-nous -
46 3016440 Pin-hinge (2) Appelez-nous -
47 3204269 Screw Appelez-nous -
48 5303211472 Thermal Limiter Special Order $ 59.68

51 5303285467 Screw Appelez-nous -
53 3016442 Strike Plate Special Order $ 4.87

55 5303004083 Pad-legs (4) Appelez-nous -
57 5303161185 Screw Appelez-nous -
58 5303161050 Heater Assembly Appelez-nous -
60 3205414 Hose-drain Appelez-nous -
61 5303204987 Retainer-hose Appelez-nous -
63 5364154013 Clamp Appelez-nous -
64 3204375 Check Valve Special Order $ 48.06

65 5303161252 Bracket-capacitor Appelez-nous -
66 5308014903 Capacitor Appelez-nous -
67 5303161233 Screw Appelez-nous -
68 5303212087 Cover - Terminal Appelez-nous -
69 3204991 Panel-access (white) Appelez-nous -
72 5308011318 Screw Appelez-nous -
73 3161240 Screw Appelez-nous -
*76423 5303937030 Insulation - Rear & Vent Panels Appelez-nous -
*76423 134890500 Assist Spring-washer Lid (2)   (Replaces: 5303212876) Special Order $ 19.85

42A 5303161233 Screw Appelez-nous -
44A 5303209461 Screw Appelez-nous -
46A 5303208633 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

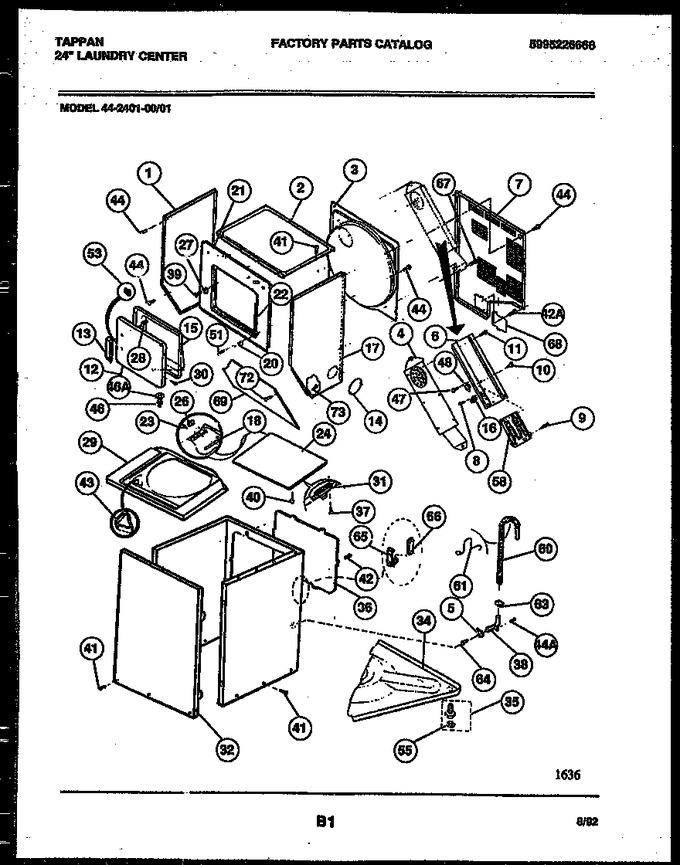

Diagram for 44-2401-00-01
