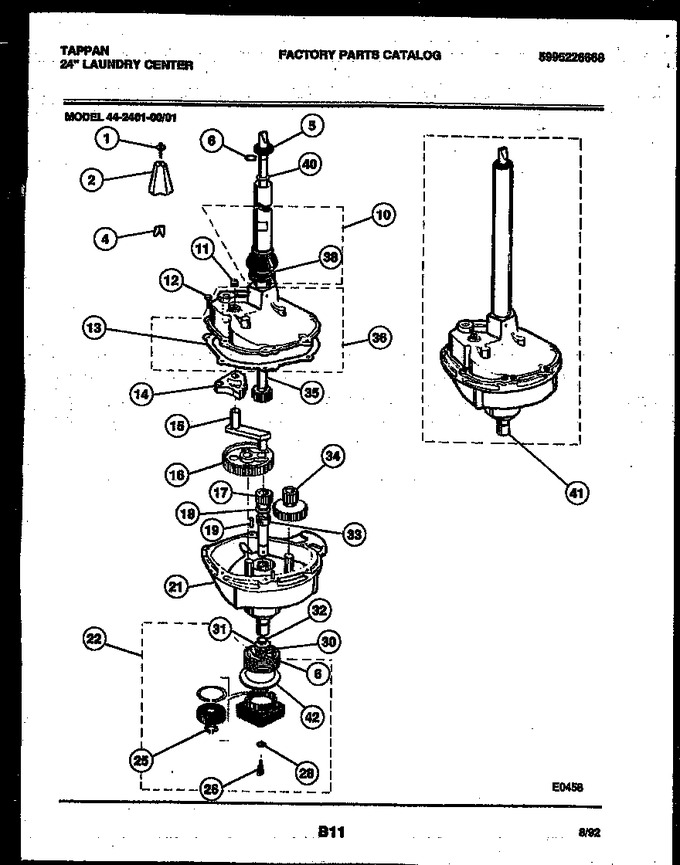

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303161221		Stud Bolt-agitator Shaft				$ 16.38
2	5303280324		Drive Block				$ 39.38
4	5303280324		Drive Block				$ 39.38
5	5303161307		Upper Lip Seal-agitator Shaft			Immediately	$ 21.27
6	5303161223		Retaining Ring				$ 10.24
10	5308950197		Water Seal Kit				$ 73.03
11	5303161224		Pipe Plug		Appelez-nous	-
12	08002804		Screw-hsg To Hsg (4)		Appelez-nous	-
13	5308015778		Gasket-gear Housing				$ 33.18
14	5308011268		Sector Gear		Appelez-nous	-
15	5303161169		Connecting Rod		Appelez-nous	-
16	5308015496		Crank Gear		Appelez-nous	-
17	5308014905		Lower Shaft		Appelez-nous	-
18	5303161226		Thrust Washer		Appelez-nous	-
19	5303161227		Dowel Pin		Appelez-nous	-
21	5303912535		Lower Housing Assy (includes Illus 13)		Appelez-nous	-
22	5308950058		Bearing Housing/lgs Spring Package		Appelez-nous	-
25	5308015536		Retaining Ring		Appelez-nous	-
26	5308027582		Screw - Plate/brg Hsg (2)		Appelez-nous	-
28	5303207426		Spacer				$ 9.21
30	5308002475		Spacer Washer		Appelez-nous	-
31	5303161226		Thrust Washer		Appelez-nous	-
32	5303161173		Lower Lip Seal				$ 9.36
33	5303161174		Small Lgs Spring				$ 22.10
34	5303161175		Idler Gear		Appelez-nous	-
35	5308014910		Agitator Shaft Assy		Appelez-nous	-
36	5303937039		Upper Hsg Assy (with Gasket)		Appelez-nous	-
38	5303272073		Slinger - Agitator Shaft				$ 29.82
40	5303161232		Thrust Washer-agitator Shaft		Appelez-nous	-
41	134736400		Transmission-complete   (Replaces: 5308057579)				$ 875.74
42	5308057430		Washer-clutch Coil		Appelez-nous	-
*76444	3005242		Transmission Oil (1 Qt)		Appelez-nous	-
*76445	5303161182		Sleeve-clutch Coil		Appelez-nous	-
