SELECT A DIAGRAM

01 - Cover


03 - Upper Cabinet/drum Heater


05 - Motor/blower/belt

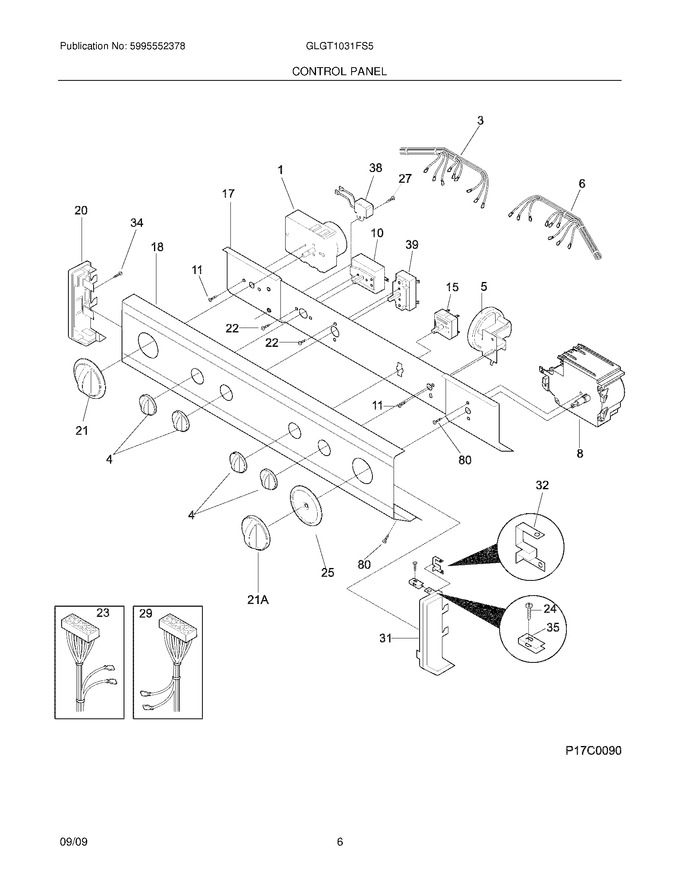

07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer,dryer ,3-off				$ 336.65
4	134844470		Knob,rotary ,white			Immediately	$ 66.92
5	137015000		Switch,pressure ,3 Position				$ 76.81
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	134263400		Bracket,control Mount		Appelez-nous	-
18	134284200		Panel,trimplate ,console Front				$ 201.29
20	131288101		End Cap,white ,lh				$ 53.02
21	134043000		Knob,dryer Timer ,white/dark Gray			Immediately	$ 59.54
22	3161259		Screw,switch Mtg ,6-32 X 0 .19 ,(2) ,sems				$ 6.83
24	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
25	131976804		Indicator,timer Pointer ,white/dark Gray,washer				$ 36.33
27	131892100		Screw,6-20b X 0.230		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
21A	134043200		Knob,washer Timer ,white			Immediately	$ 49.62
F10	134399700		Switch,start ,lcd			Immediately	$ 83.77
F15	134410100		Switch,temperature ,3 Position				$ 45.68
F23	134605800		Wiring Harness,main		Appelez-nous	-
F29	137061100		Wiring Harness,washer ,lower				$ 131.04
F3	131703600		Wiring Harness,dryer Control		Appelez-nous	-
F38	5303286537		Buzzer				$ 93.61
F39	134399800		Switch,dryer Temp ,rotary 4 Pos				$ 70.78
F6	137061000		Wiring Harness,washer Control				$ 166.01
F8	134924400		Timer,4-off W/bitron ,washer				$ 341.18
FNI	134101400		Terminal Block,main			Immediately	$ 55.99
NI	5304426200		Screw,terminal Block		Appelez-nous	-
NI	131209800		Clamp,hose ,pressure Switch				$ 65.92
