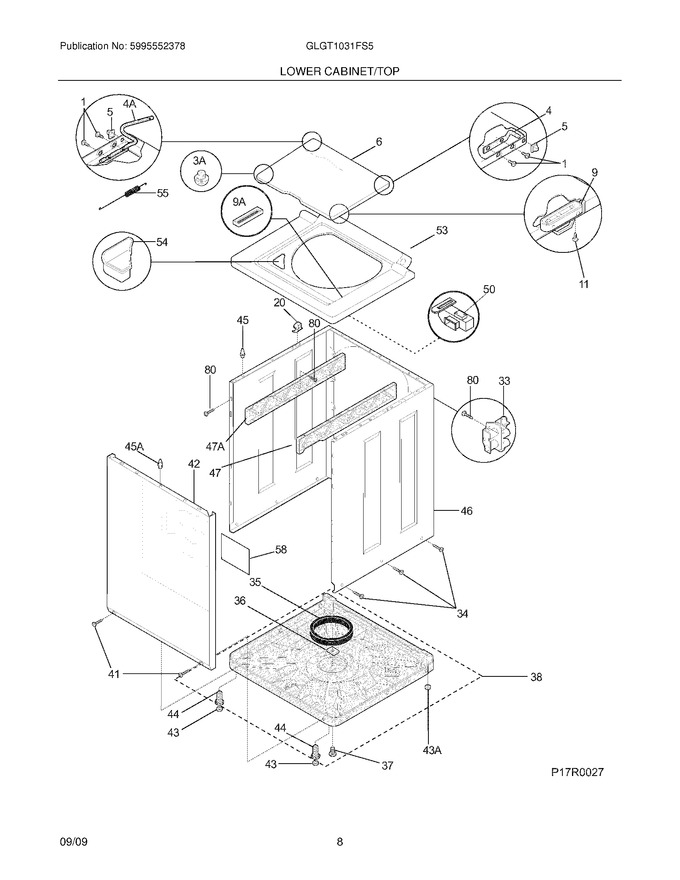

09 - Lower Cabinet/top
11 - Motor/tub
13 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134203900 | Screw,pan Hd Phillips ,6-32 X 0.337 ,dog Point |
|
$ 10.85 | |||||
| 4 | 137104700 | Hinge Bar,rh |
|
$ 269.43 | |||||
| 5 | 5303208743 | Grommet,hinge |
|
$ 5.63 | |||||
| 6 | 5303212872 | Lid,washer ,white |
|
Immediately | $ 345.16 | ||||
| 9 | 131390000 | Lid Strike |
|
$ 55.19 | |||||
| 11 | 3204368 | Screw,lid Strike Mtg ,6-20b X 0.375 |
|
$ 13.01 | |||||
| 20 | 3204374 | Pin,slide ,side To Top |
|
$ 78.67 | |||||
| 34 | 131205500 | Screw,cab Body ,1/4-14 X 0.625 ,side-to-base |
|
$ 13.46 | |||||
| 35 | 5308002385 | Snubber Ring |
|
$ 54.86 | |||||
| 36 | 3204380 | Shipping Block |
|
$ 12.29 | |||||
| 37 | 131658900 | Screw,shipping ,1/4-20 X 1.001 ,yellow ,unit Base,thread Forming |
|
$ 6.77 | |||||
| 38 | 5303311213 | Base Assembly |
|
$ 374.69 | |||||
| 41 | 131302800 | Screw,10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 42 | 131104303 | Panel - Front - White |
|
$ 309.70 | |||||
| 43 | 131422100 | Pad-leveling Leg |
|
$ 17.59 | |||||
| 44 | 134548800 | Screw,leveling Leg ,with Pad (Replaces: 5303309673) |
|
Immediately | $ 30.20 | ||||
| 45 | 131346400 | Pin,panel Locator |
|
$ 12.44 | |||||
| 46 | 134046600 | Cabinet Assy,white ,back And Sides |
|
$ 383.99 | |||||
| 47 | 131106701 | Bracket-marriage-rh |
|
- | |||||
| 50 | 134936800 | Lock,lid ,bitron |
|
Immediately | $ 99.94 | ||||
| 53 | 137194710 | Panel,washer Top ,white |
|
$ 262.15 | |||||
| 54 | 3204394 | Dispenser-bleach |
|
$ 59.96 | |||||
| 55 | 137046100 | Spring,lid Assist |
|
$ 41.27 | |||||
| 58 | 131744202 | Damper,vibration ,2.5x2.5x.070 |
|
- | |||||
| 80 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 134547800) |
|
Immediately | $ 14.18 | ||||
| 3A | 134075500 | Bumper,lid ,front |
|
$ 17.35 | |||||
| 43A | 131422200 | Pad,self Lvlg Leg ,rear |
|
Immediately | $ 56.70 | ||||
| 45A | 131346401 | Pin,panel Locator ,front |
|
Immediately | $ 16.63 | ||||
| 47A | 131091001 | Bracket-marriage-lh |
|
- | |||||
| 4A | 5304489657 | Hinge Bar,universal (Replaces: 3205250) |
|
$ 82.93 | |||||
| 9A | 134768500 | Insert,striker Plate ,lid Slot |
|
$ 2.84 | |||||
| F33 | 134890600 | Valve,water ,115 V |
|
Immediately | $ 96.54 |
